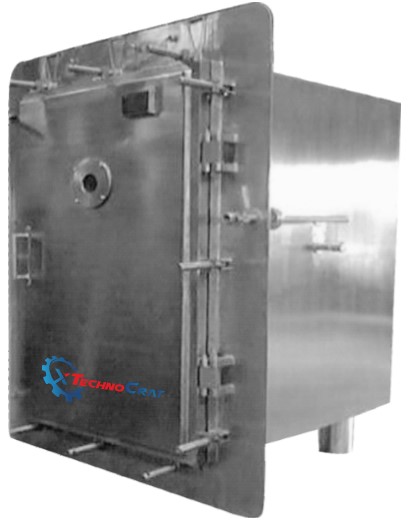

Vacuum Tray Dryer
Vacuum Tray Dryer Features
- Main Body/Vacuum Chamber SS316 with heavy-duty SS316 flange and stiffeners
- Door SS316 (dish curve shape) with heavy-duty SS316 flange
- Shelves hollow type pads SS316 with flow baffles

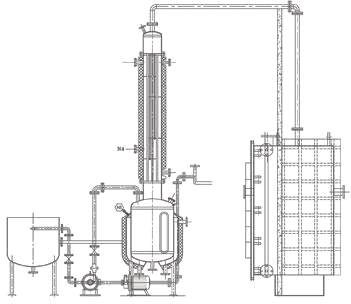

- Condenser (shell & tube type) and receiver (cylindrical/bottom cone type) in SS304 with isolation valve and flow glass in between to monitor condensation
- Trays (without back folding) in SS316, rounded corners and edges
- Explosion vent/rupture disc on vacuum chamber
- Digital temperature controller (FLP) with solenoid- controlled pneumatic operated valve at hot water inlet
- Provision for validation port on body
- Digital temperature indicator (FLP) at H.W. inlet & outlet
- Dial-type vacuum gauge and digital temperature indicator (FLP) in vapour line
- Pressure release valve in steam line
- View glass/light glass provided on vacuum chamber door, body, and receiver
- Silicon transparent gasket for door
- Nitrogen purging valve provided on vacuum chamber
- Vacuum break valve provided on vacuum chamber
- Drain valve for vacuum chamber and receiver

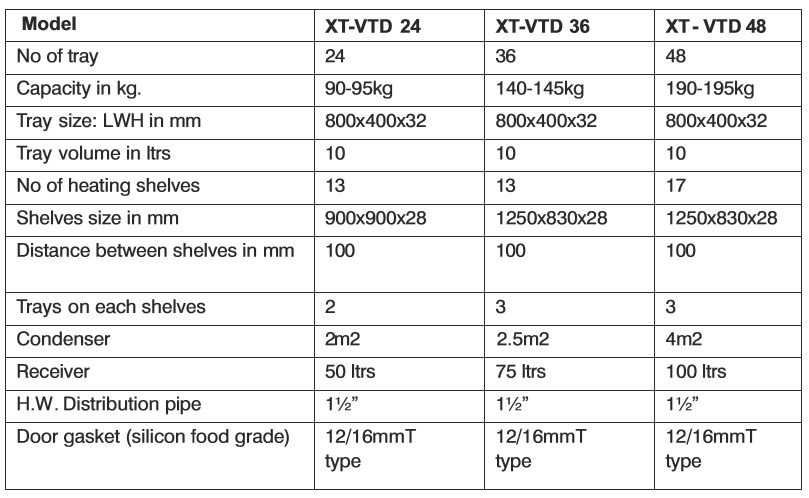

Technical Specifications
