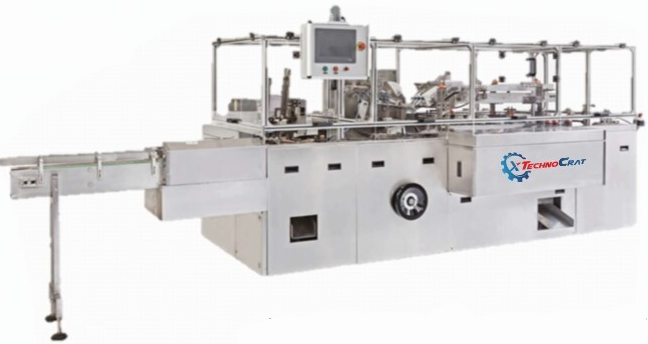

Continuous Cartoning Machine
MODEL XT-HC 120
Well Suited To Handle Products
Such as Tubes, Bottles, Vials, Blisters, Soaps, Sachets, Pouches Etc.
Features
- Continuous motion loading enables gradual and smooth product insertion.
- Safety features to protect the machine against mechanical and electrical overloads.
- Programmable operational time for key machine functions.
- HMI enables fast and easy troubleshooting of issues reducing downtime.
- Programmable user profiles to restrict HMI access based on user level.
- Variable speed drive allows to match cartoning speed with upstream equipment such as a tube filling.
- Bottle filling or labelling machine.
Technical Specifications
MODEL XT-HC 220
WELL SUITED TO HANDLE PRODUCTS SUCH AS TUBES, BOTTLES, VIALS, BLISTERS, SOAPS, SACHETS, POUCHES ETC.
Optional Items
- Pre-folded leaflet insertion unit, folding and insertion unit.
- Online printing or debossing with stereos.
- TIJ/CIJ printing unit with printing inspection system.
- Safety guards with/without door switch interlock.
- Transfer systems for bottles, vials, tubes, blisters etc. available.
- Barcode/ Pharmacode detection for carton and leaflet.
- CE certification of the machine.
- 21 CFR Part 11 Compliance.
Interlocks and Alarms
- No-product no-leaflet
- No-leaflet no-carton
- No-carton no-push
- Low Air pressure detection and action
- Pusher overload detection and action
- Drive overload detection and action
- Low carton/leaflet level warnings
Technical Specifications
MODEL XT-HC 320

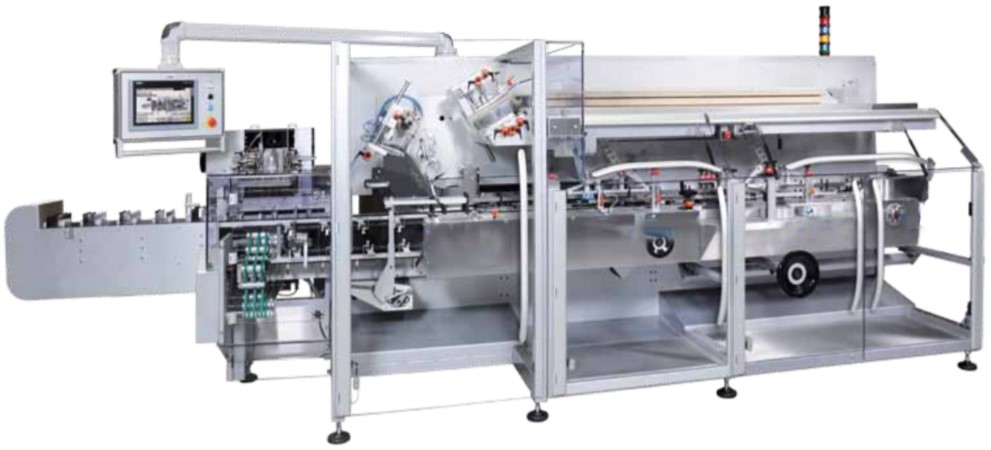

The HC320 is a side-load, continuous motion cartoning machine suitable for automatic packaging of pharmaceutical, nutraceutical, cosmetic and food products into pre-glued cartons. It features a balcony-style design, a neat separation between electrical and mechanical sections and belt-driven mechanical movements for low- noise operation. Positive carton pick-up and forming, controlled transportation based on an adjustable belt system, and coated guides to eliminate marking on components allow smooth operation and materials handling. The extended carton magazine offers a very high loading capacity and can be moved away from the product flow area to allow full machine accessibility for maintenance and changeover. Tuck-in, hot melt or a combination of tuck-in and hot melt (tamper evident) flap closures are available.

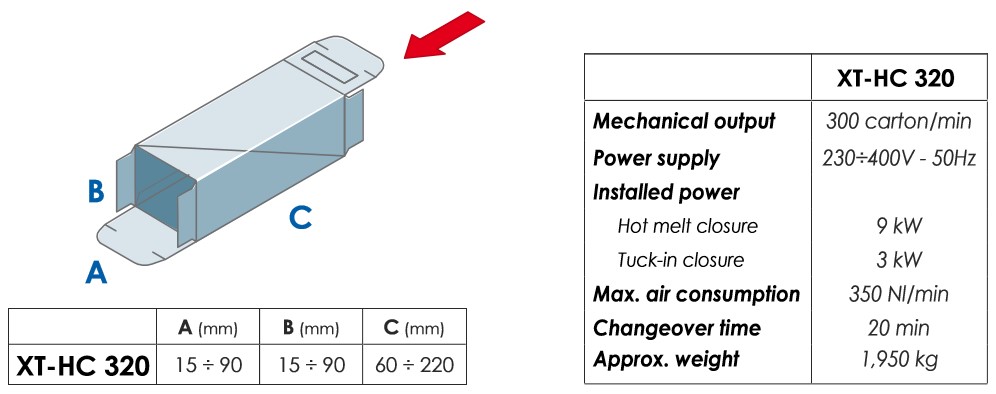

Technical Specifications
