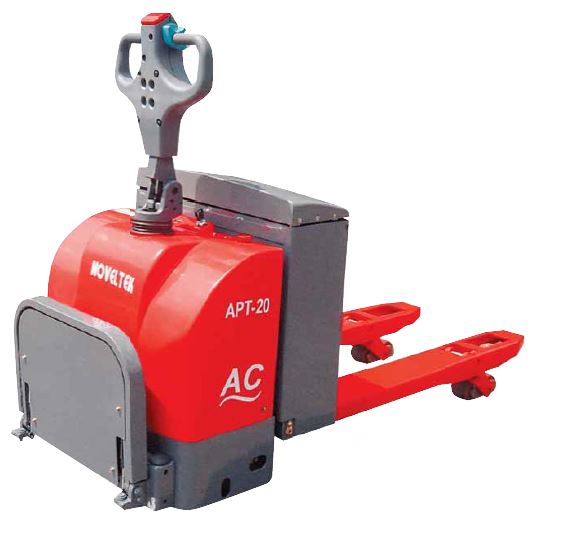

ADVANCED POWERED PALLET TRUCK (AC SYSTEM)
. Advance AC motor truck.
· Brushless , reduce service cost
· With flux AC inverter
· 30% Battery efficiency improvement.
· Hidden caster wheels, improve safety
· Suitable for both open and closed pallets
· Suspension drive motor allowing to use the truck on uneven surfaces.
· Quiet, and safe operation.
· Environmentally, friendly, durable, reliable truck.
· Electric drive, electric lifting.
· This truck has cold version for -35°C cold storage use.
· Lead-free PU baked enamel painting.
Foldable side protection guards, Longer steering handle, Stopper for ride-on platform, Removable back rest,
-35°C cold storage type, 65mm low profile fork height, and 75mm middle profile fork height, Non-marking white
rubber drive wheel, Polyurethane drive wheel, Hydraulic restrictor valve(reduce lowering speed), DC drive motor
& controller…etc.
OPTIONAL SPECIFICATIONS:
W1: Overall fork width 470mm/18.50″ 520mm/20.47″ 685mm/27″
W2: Fork inner width 120mm/4.72″ 170mm/6.69″ 335mm/13.19″
L : Fork length 1000mm/39.37″ 1300mm/51.18″ 1450mm/57.09″

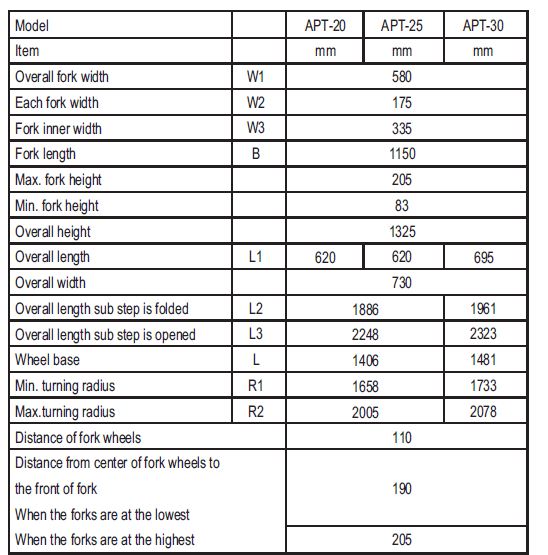

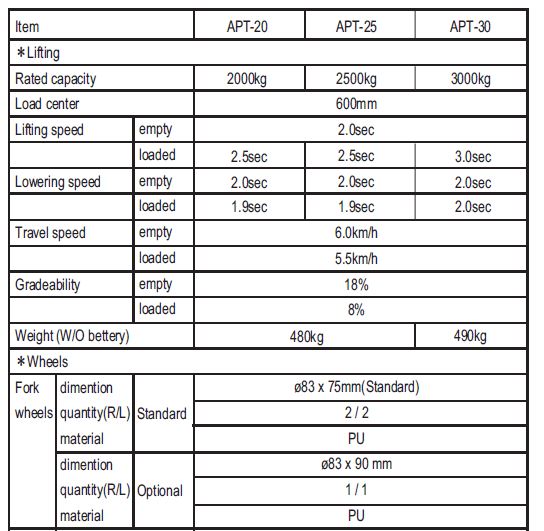

Model : APT-20/25/30 AC (2.0 TONS / 2.5 TONS / 3 TONS)

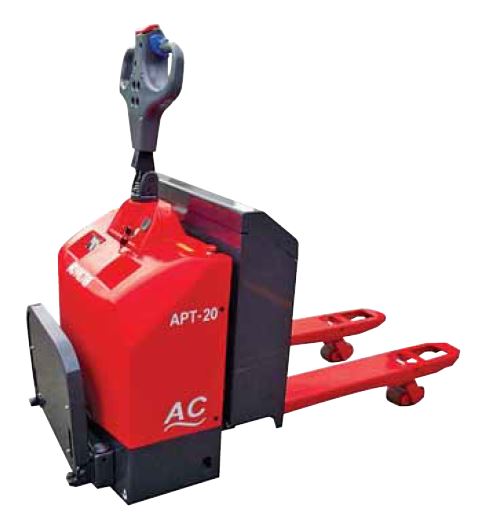

ADVANCED POWERED PALLET TRUCK With EPS
Indication of battery state of charge
· Operating hour meter
· With CANBUS system, low battery protection alarm shows all trouble coding for easier service use.
· EPS Steering Arm(Electronic Power Steering) Steering Arm can work at 185 degree total arc for extra convenience.
· With AC driving motor, it can save electricity efficiently by 30% at least, and carbon brushless equipped for easier maintenance.
· While steering, speed lowering down automatically by 50%.
· Latest AC inverter circuit control system brings stability, power saving, calmness and cleanliness.
· Adjustable speed setting.
· With bright colored coating composed of a defined surface treatment, anti-rust primer and lead-free PU baked enamel painting.
· Professional long-term traction battery for lift-truck use only.
· Customization for clients’ requirements.

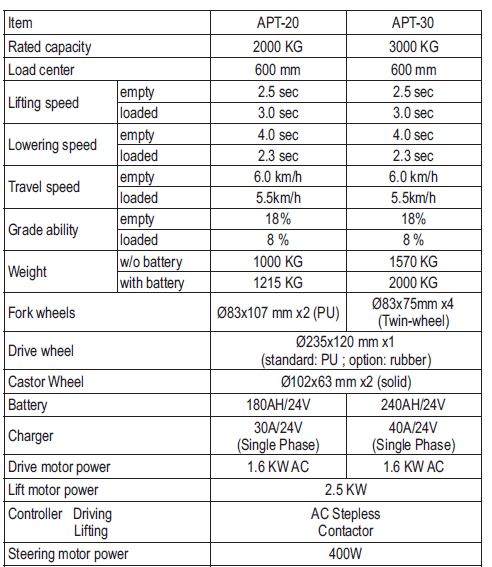

Model : APT-20/30+EPS Electronic Power Steering

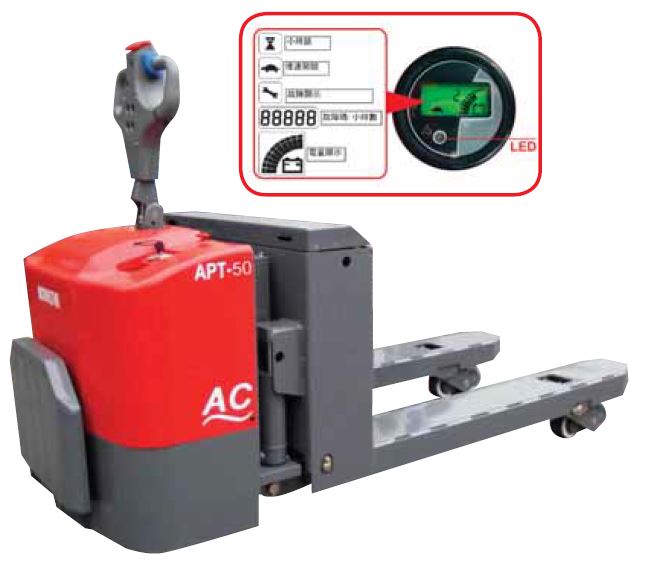

ADVANCED POWERED PALLET TRUCK (AC SYSTEM) WITH EPS (HEAVY DUTY)
· LED MDI-CAN multifunctional indicator has many internal functions:
Indication of battery’s state of charge.
Operating hour meter.
With CANBUS system, low battery protection alarm and shows all trouble coding for easy service use.
· EPS Steering Arm. (Electronic Power Steering) Steering Arm can work in 185 degree total arc for extra convenience.
· With AC drive motor can save electricity efficiently by 30% and carbon brushless, easy maintenance.
· Powerful Traction Battery
· With bright colored coating composed of a detailed surface treatment, anti-rust primer, and lead-free PU baked enamel painting.

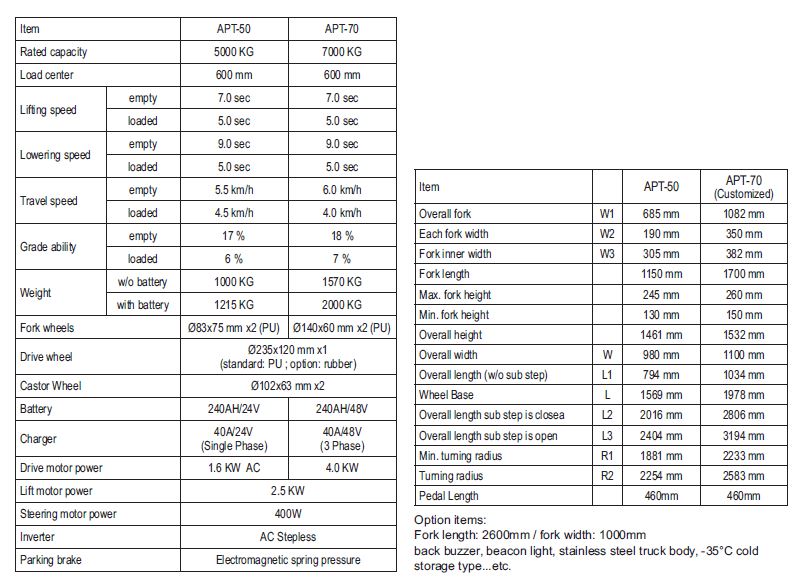

Model : APT-50/70 AC+EPS ( 5.0 TONS)(HEAVY DUTY)

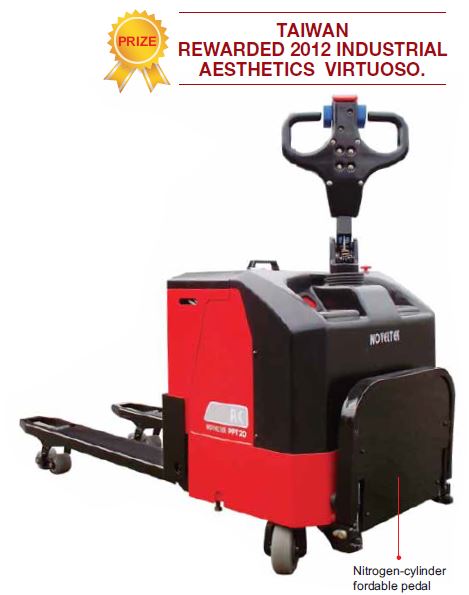

Full-Electric Pallet Truck
Especially designed in accordance with idea of aesthetic expertise, it
works both functional and aesthetical performances perfectly.
· Strong-shaped appearance with extra loading spaces and file holders
· Stable, mighty driving and lifting motors.
· Unique pump-oil circulator with overloading protection system.
· Hi-tech electric control system with the optional AC or DC one.
· Cold version for -35°C cold storage application.
· Customized model for particular application.

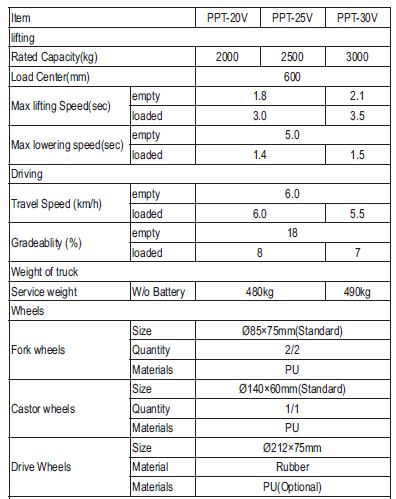

Model : PPT-20V/25V/30V

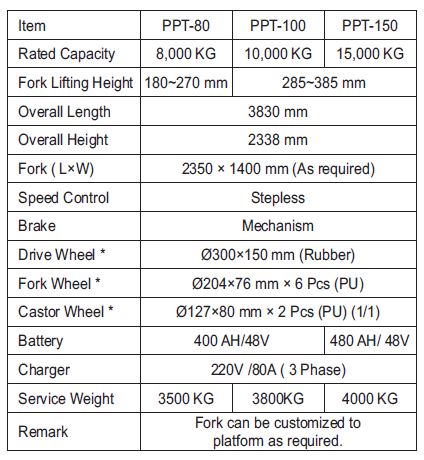

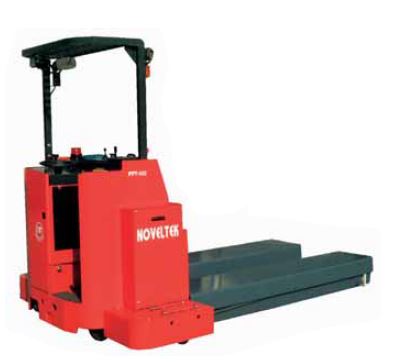

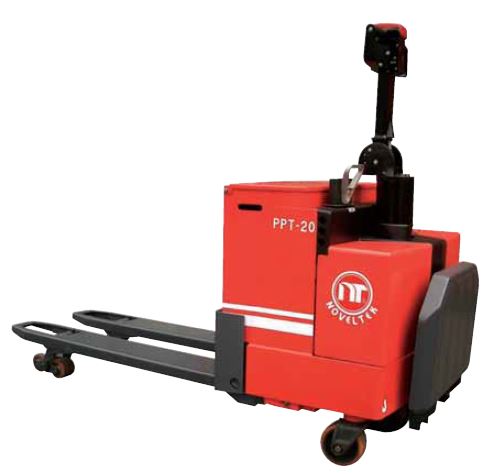

POWERED PALLET TRUCK
POWERED PALLET TRUCK
(1.8 TONS / 2 TONS / 2.5 TONS / 3 TONS / 4 TONS)
Ride-on drive, easy handling.
· Quiet, safety, durable, reliable.
· No pollution.
· Electric drive, electric lifting.
· Lead-free PU baked enamel painting.
· When lifting, forks raise alone without battery, thus, the power is economically saved.
· Forks can lift up to 205mm. It can carry open pallet or closed pallet.
· 2 pcs of the hydraulic lifting cylinders are built in right and left sides. It lifts very stable and much better than the single hydraulic lifting cylinder product.
· 2 pcs of the strong castor wheels are fixed at right and left sides.
This truck doesn’t have any balance problems when turn a circle.
· Suspension drive motor and wheel can move up and down by 45mm. This truck has a very powerful climbing ability. This mechanism is controlled by 3 springs.
· Emergency handle can cut-off all electricity.
· This truck has cold version for -35°C cold storage use.
· Leadless painting
POWERED ORDER PICKER STACKER
The order picker can stand in-side of the lift table and control up/down.
· Adjustable forged forks, suitable for any kinds ofpallets.
· Raise the forks a further 800mmfor picker use.The max fork lifting height is the max lift table height plus 800mm.
· Ride-on platform at back-side for driving use.
· Double hydraulic control systems in the lift table and ride-on platform Lead-free PU baked enamel paintin

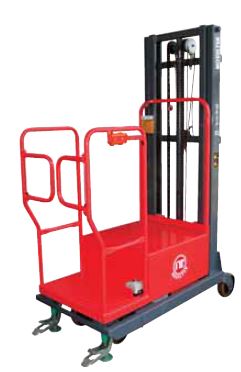

SEMI-POWERED ORDER PICKER STACKER (200KG, 440LB)Quiet, clean, high quality.
· The picker can pick the goods at 4.5 Meter high.
· Picking height 5.0 And 5.5 Meter are optional.
· Charger of 110V/12V-12A (build-in) is optional.
· Manually propelled, powered lifting order picker stacker.
· The up/down switch is built in the side rail. It is very easy to handle.
· Light weight stacker. It is very easy operated and very durable quality.
· 2 pieces of foot parking brakes.
· -20oC cold storage type is optional
