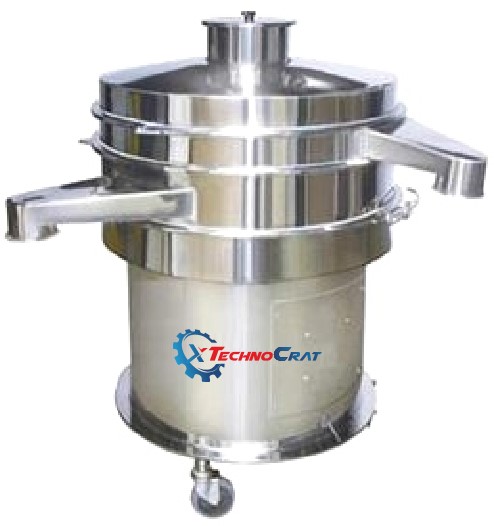

Vibro Shifter
High Shear Mixer Granulator
XTECHNOCRAT offers state-of-the-art High Shear Mixer Granulators designed for pharmaceutical, chemical, and food industries. Our mixers are versatile, efficient, and equipped with high-speed impellers and choppers for consistent mixing and granulation. The mixer’s controlled granulation process ensures uniform granule size distribution, and its customizable design allows for optimal mixing and granulation for different products. Our High Shear Mixer Granulator is easy to maintain, fully enclosed, and prevents cross-contamination, making it an essential tool for high quality product production.
Features
- Unique design incorporating Impeller, Granulator, Online Co-mill, Side discharge valve & dryer.
- Internal and External surfaces of Mixing Bowl, Mixing Bowl cover, Impeller, Granulator, and Discharge Chute constructed in SS 304/316L.
- Specially mounted torque sensor arrangement for critical parameters of granulation like end point determination & desired granule profile.
- Impeller Lifting Options.
- Pneumatically Operated Bottom Impeller Lifting for ease of cleaning.
- Electromechanical impeller lifting and removing mechanism.
- Hydraulically operated Lid lifting.
- Parts easy to dismantle, clean and re-assemble.
- Pneumatics pre-tubed.
- Gaskets of Teflon/Silicon.
- Bowl surface finish of 0.3RA (inside/outside).
- ATEX Compliant option available.
- Customised capacities available.
- Optional features of Jacketed models, Vacuum / Gravity Charging, Mechanical Seals, Binder Spraying systems,CIP / WIP Systems, Vacuum drying, 21 CFR Part 11 Compliance with Scada Software available.
- Drying under vacuum, at lower temperature with solvent recovery system.
- Optional features for dryer include PLC control with printer, Turnkey with hearing, vacuum and solvent recovery system.
Technical Specification
XT-RMG | WORKING CAPACITY (IN LTRS) | MOTOR HP | APPROX. WEIGHT (IN KG) |
|---|---|---|---|
XT-HSMG-10
| 8 | 2 | 500 |
XT-HSMG-25 | 40 | 10 | 120 |
XT-HSMG-75 | 60 | 15 | 1500 |
XT-HSMG-100 | 80 | 21 | 1700 |
XT-HSMG-150 | 120 | 21 | 2000 |
XT-HSMG-200 | 160 | 28 | 2300 |
XT-HSMG-250 | 200 | 38 | 2500 |
XT-HSMG-300 | 240 | 38 | 2500 |
XT-HSMG-400 | 320 | 48 | 3000 |
XT-HSMG-600 | 480 | 62.5 | 3500 |
XT-HSMG-800 | 640 | 72.5 | 3500 |
XT-HSMG-1000 | 800 | 82.5 | 4000 |
XT-HSMG-1200 | 960 | 105 | 4300 |
XT-HSMG-1400 | 1120 | 120 | 4500 |
XT-HSMG-1800 | 1360 | 140 | 4800 |
