Material Handling Equipments
Counter Balanced Forklift

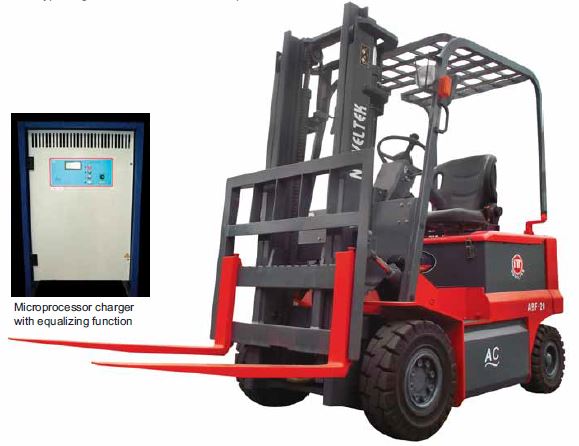

ADVANCED ELECTRIC FORKLIFT TRUCK (AC SYSTEM)
· AC stepless inverter
· Save electricity efficiently by 30%
· Without carbon brush, easy maintenance
· No noise
· No pollution
· Can be turned in a 3.3 meter wide aisle for model ABF-15/20
· Soft solid tyres on 4 wheels
· Full hydraulic power steering
· Max fork lifting height between 2 meters and 6.35 meters
· Hydraulic power brake
· Mechanical hand parking brake
· Lead-free PU baked enamel painting
· Triple stage, full free lift mast, -35°C cold storage version, side
shift, special attachment clamps, and explosion protection and
shaft type forged forks are available as options.
Model : ABF-15/20/25 (1.5 TONS / 2 TONS / 2.5 TONS)

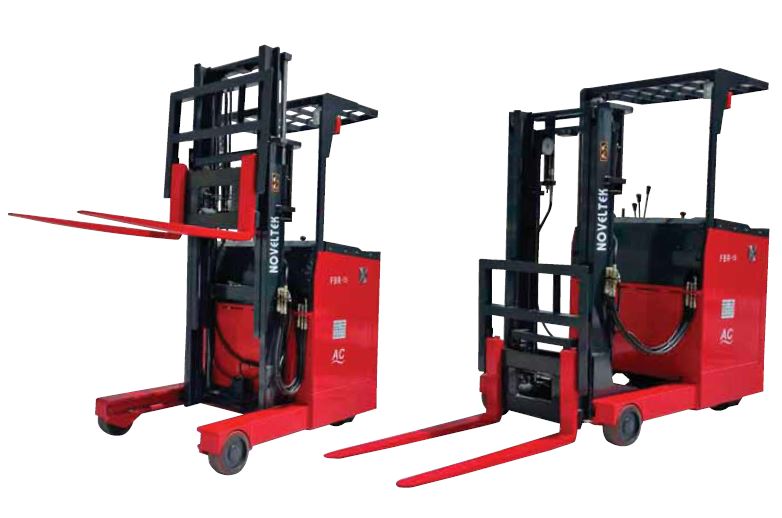

COUNTER BALANCED REACH TRUCK
· Mast reach electric stacker.
· Advanced ac motor product.
· Without carbon brush, easy maintenance.
· Save electricity efficiently by 30%.
· Lead-free pu baked enamel painting.
· Easy drive steering wheel .
· Mast draw back can reduce truck weight, length and increase stability.
· No pollution, quiet, safty, durable and reliable
· Easy change battery by side move design.
· Electric-motor power steering (E.P.S.) Provides surprisingly-light steering and allows for easy
operation in narrow aisles.
· LCD graphic smart display is an intelligent dashboard connected to the truck system by can-bus
line. Which provides the operator with a easy information about the status of some truck devices.
Optional items:
-35oC Cold storage version, side shift…Etc. Are available as options.
Model : FBR-10/15/20 (1 TON / 1.5 TONS / 2 TONS)

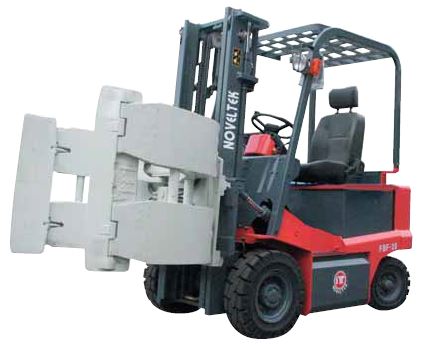

ADVANCED SIT-ON ELECTRIC FORK LIFT TRUCK+ PAPER ROLL CLAMP (AC SYSTEM)
AC stepless inverter.
· Adjustable and cushion seat with safety switch.
· Soft solid tyres are standard.
· 3 Sets of hydraulic systems:
Lifting / tilting / clamping.
· Lead-free PU baked enamel painting.
· A rugged paper roll clamps handle
paper rolls of every size to meet clients’ unique requirements.
Model : ABF-15/20/25 + PAPER ROLL CLAMP (1 TON / 1.5 TONS / 2 TONS)

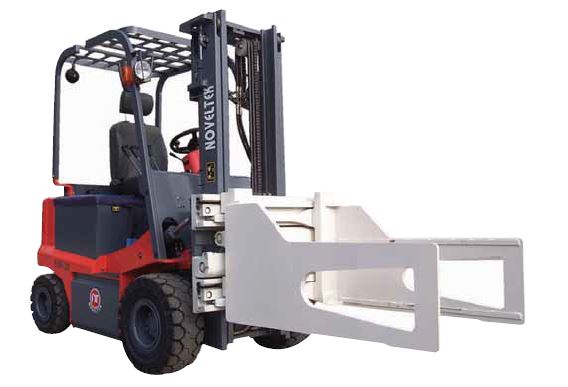

ADVANCED SIT-ON ELECTRIC FORK LIFT TRUCK+ BALE CLAMP (AC SYSTEM)
Palletless handling of nearly any type of baled product such as cotton,
wool, synthetic textile bales, corrugated, newsprint, rag, hay and
metal scrap bales translates into savings in time and storage costs.
Model : ABF-15/20/25 + BALE CLAMP (1 TON / 1.5 TONS / 2 TONS)

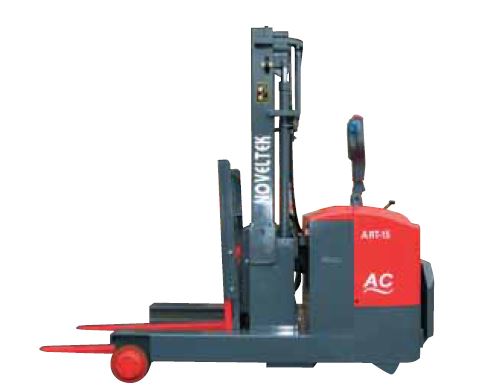

ADVANCED COUNTERBALANCED REACH TRUCK (AC SYSTEM)
With EPS (Electronic Power Steering) system, very easy to drive.
· Mast reach electric stacker
· Advanced AC motor product
· Without carbon brush, easy maintenance
· Save electricity efficiently by 30%
· FRP body cover and battery cover
· Lead-free PU baked enamel painting
· Polyoxymethylene Steering Arm
· Mast draw back can reduce truck weight, reduce truck length and increase stability
· With a slow drive speed switch for duplex mast
HI-LO (3M or above) and triple stage mast HI-LO
(3.5M or above)
· No pollution, quiet, safety, durable and reliable
· Easy change battery by side move design.
Optional items:
-35°C cold storage version, foldable side protection guards, side shift, battery change table, shaft type forks, crane…etc. are available as options

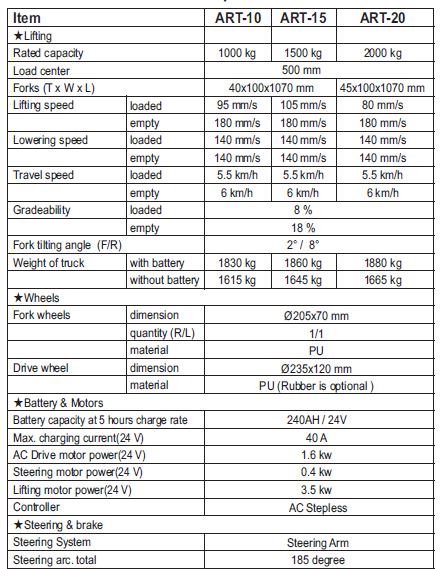

Model : ART-10/15/20/ AC+EPS (1 TON / 1.5 TONS / 2 TONS)

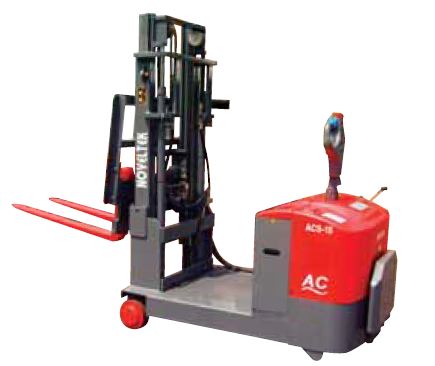

ADVANCED COUNTERBALANCED WALKIE STACKER (AC SYSTEM)
Electronic Power Steering system (EPS system) very easy to drive
· Advanced AC motor product
· Without carbon brush, reduce service cost
· Save electricity efficiently by 30%
· FRP body cover and battery cover
· Lead-free PU baked enamel coating
· Polyoxymethylene Steering Arm
· No pollution, quiet, safety, durable and reliable
· Adjustable forged forks suitable for any pallets
· Use Germany Hoesch brand section steel to make the high safety .It can be operated in 2.7 meter width aisle for ACS-08/10
· Back buzzer is a standard function
· Max. fork lifting height between 2 meter and 6 meter
· With a slow drive speed switch for duplex mast HI-LO (3m or
above) and triple stage mast HI-LO (3.5M or above)
· With grounding chain with PU drive wheel.
· Easy change battery by side move design.
Optional items:
Triple stage, full free lift mast, -35°C cold storage version, foldable side protection guards, shaft type forks, side shift, battery change table…etc. are available as options

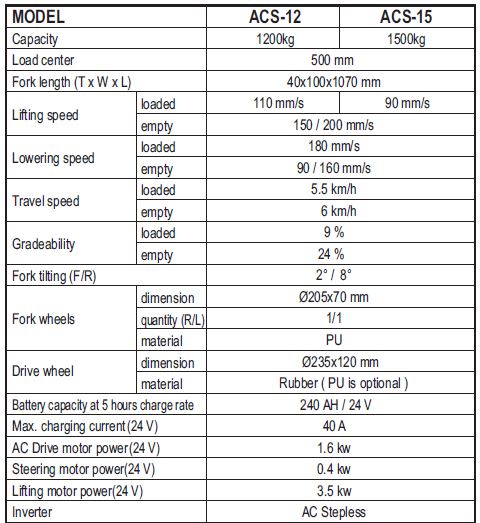

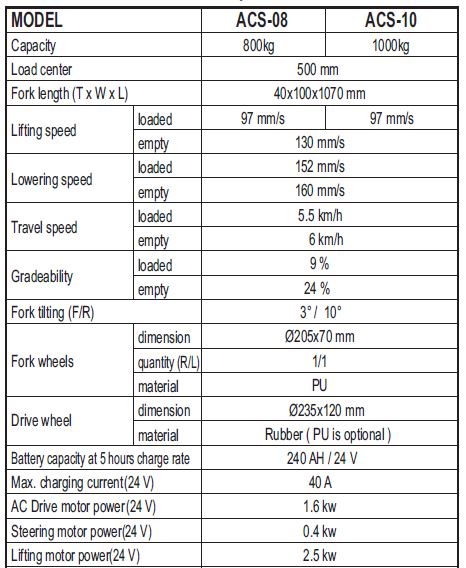

Model : ACS-08/10/12/15 AC + EPS (800KG / 1.0TON / 1.2 TONS / 1.5TONS)

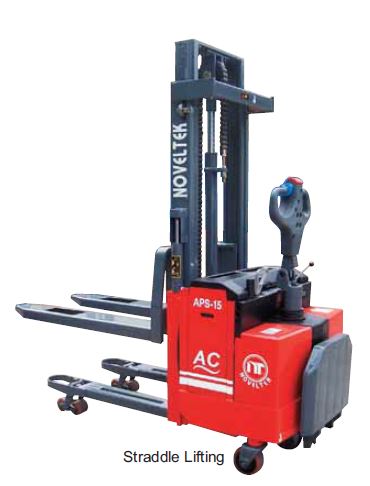

ADVANCED POWERED PALLET STACKER (AC SYSTEM)
Advanced AC motor truck.
· Suspension drive motor allowing to use the truck on uneven surfaces.
· Without carbon brush, easy maintenance.
· With AC vectorial stepless inverter.
· 30% battery efficiency improvement.
· Quiet, and safe operation.
· Environmental-friendly, durable, reliable truck.
· Electric drive, electric lifting.
· Lead-free PU baked enamel painting.
· Straddle can lift 200mm. This stacker can carry 2 pieces of european
open pallets at same time. It also has higher gradeability.
· Body length is 855mm only.
· Ride-on drive, easy handling.
· It can turn in 2.1 meter wide aisle.
· Max. fork lifting height between 2 meter and 6 meter
· With a slow drive speed switch for duplex mast
HI-LO (3m or above) and triple stage mast HI-LO (3.5M or above)
· Triple stage, full free lift mast and -35°C cold storage version…etc. are available as options.

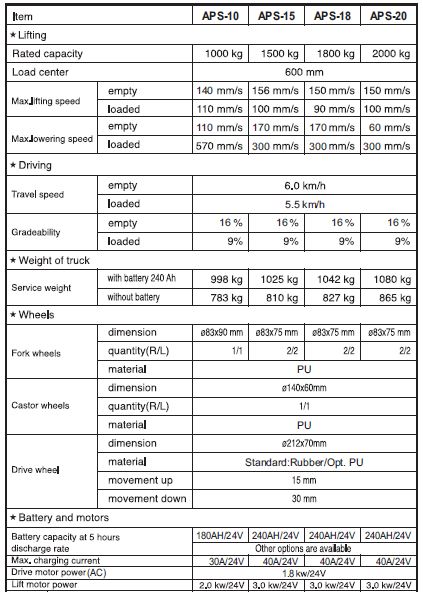

Model : APS-10/15/18/20 AC (1 TON / 1.5 TONS / 1.8 TONS / 2 TONS)

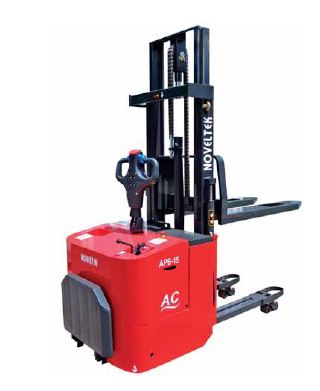

ADVANCED POWERED PALLET STACKER (AC+EPS)
Electronic Power Steering system (EPS system) very easy to drive.
· While turning steering, the drive speed lowering down automatically by 50%.
· With AC driving motor, it can save electricity efficiently by
30% at least, and carbon brushless equipped for easier
maintenance.
· Latest AC inverter circuit control system brings stability, power saving, calmness and cleanliness.
· Use Germany HOESCH brand section steel to make the high safety mast.
· Lead- free PU baked enamel painting.
· Max. fork lifting height between 2 meter and 6 meter.
· Straddle can lift 205mm. This stacker can carry 2 pieces of European open pallets at the same time. The driving wheel can move up and down by 45mm.
· Customization for clients’ requirements
A: Overall fork width 470/ 520/ 685mm
C: Fork inner width 90/ 140/ 305 mm
D: Fork length 1000/ 1300/ 1450 mm
E: Front end length 250/ 400 mm

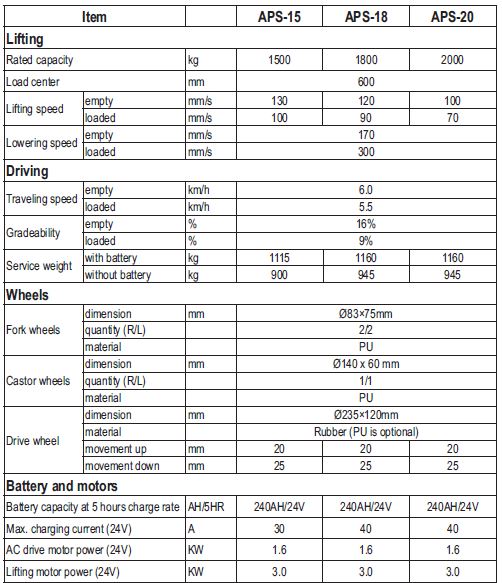

Model : APS-15/18/20 AC + EPS (1.5 TONS / 1.8 TONS / 2 TONS)

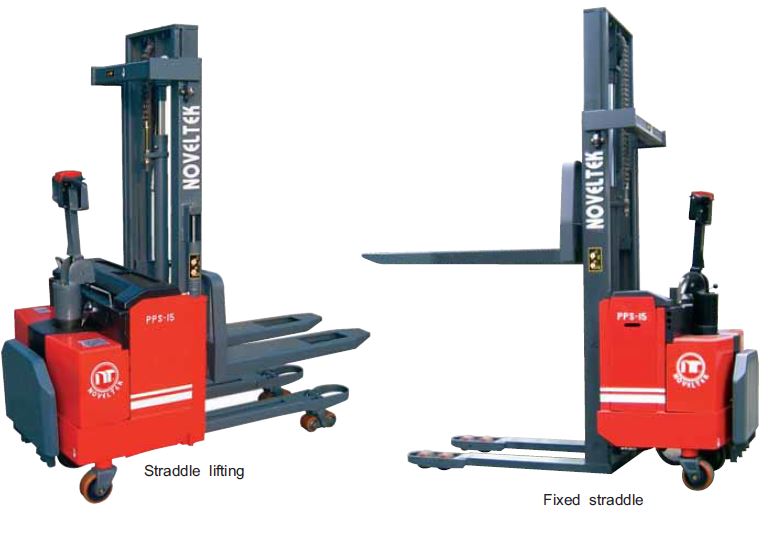

POWERED PALLET STACKER
Ride-on drive, easy handling.
· Quiet, safety, durable, reliable.
· No pollution.
· Lead-free PU baked enamel painting.
· Electric drive, electric lifting.
· Straddle can lift 200mm. This stacker can carry 2
pieces of european open pallets at same time. It also has higher gradeability.
· Body length is 855mm only.
· It can turn in 2.1 meter wide aisle.
· With a slow drive speed switch for duplex mast HI-LO (3M or above) and triple stage mast HI-LO (3.5M or above)
· Max. fork lifting height between 2 meter and 6 meter, triple stage, full free lift mast, -35°C cold storage version…etc. are available as options.
Foldable side protection guards, Longer steering handle,Forged type forks, Stopper for ride-on platform, Removable back rest, -35°C cold storage type, Adjustable straddle lift,Cablecontrol lifting,Non-marking white rubber drive wheel, Vulcollan drive wheel,…etc.

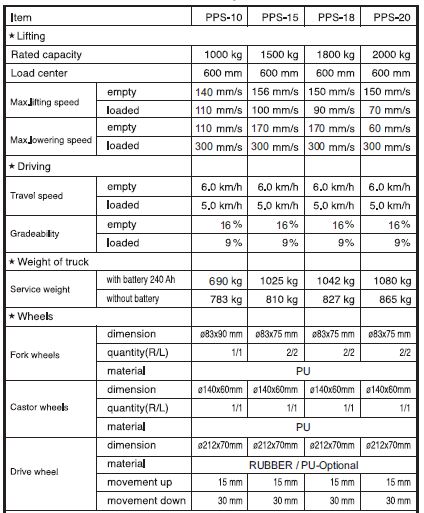

Model : PPS-10/15/18/20 AC + EPS (1 TON / 1.5 TONS / 1.8 TONS / 2 TONS)

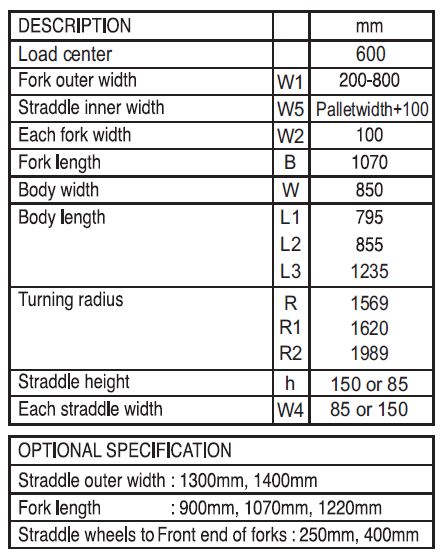

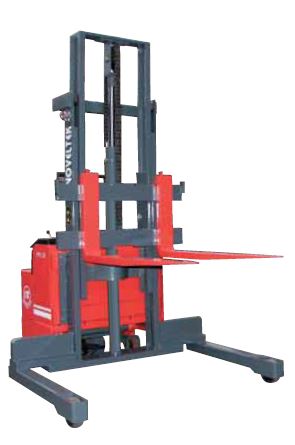

POWERED PALLET STACKER (WIDE STRADDLE VERSION)
Wide straddle version and forged fork,suitable for any pallets.
· Straddle wheel 150mm(5.9″) or 85mm (3.3″) diameters are available for your choice.
· Lifting height: from 2 meters (78.7″) to 6 meters (236.2″), triple stage HI-LO is optional.
· With a slow drive speed switch for duplex mast HI-LO (3M or above) and triple stage mast HI-LO (3.5M or above)
· -35°C cold storage type and special attachments are optional.
· Any width of straddle size can be produced to meet customers’ requirement specifications.
· Leadless painting
Foldable side protection guards, Longer steering handle,Forged type forks, Stopper for ride-on platform, Removable back rest, -35°C cold storage type, Adjustable straddle lift,Cablecontrol lifting,Non-marking white rubber drive wheel, Vulcollan drive wheel,…etc.
Model : PPS-10W/15W/18W/20W (1 TON / 1.5 TONS / 1.8 TONS / 2 TONS)
