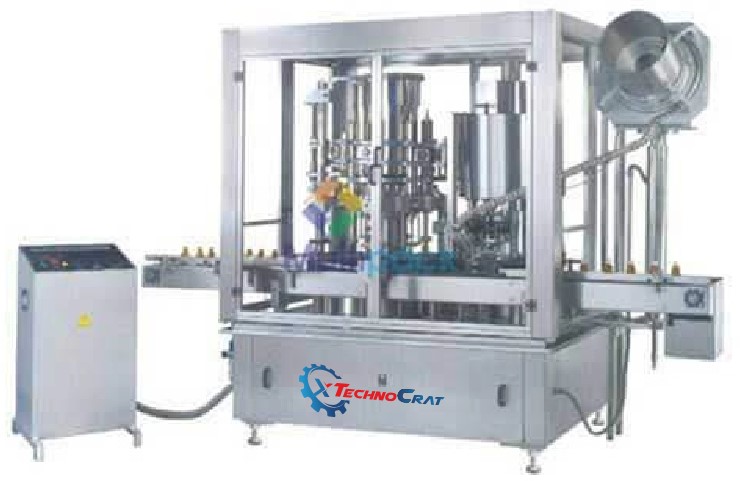

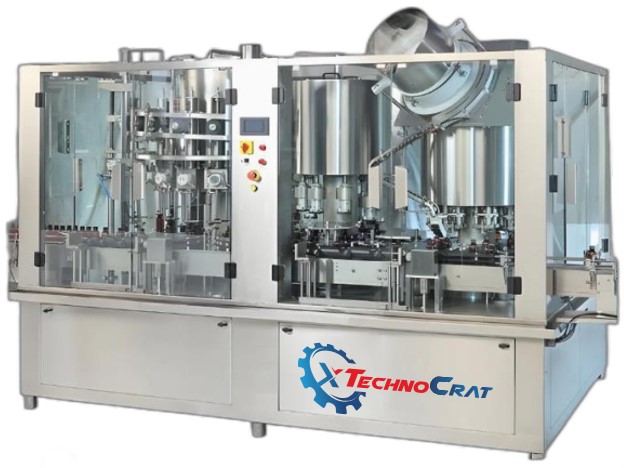

Automatic Rotary Monoblock Piston Filling Cum Sealing Machine GMP Model
Features
- ‘GMP” Model based on advanced technology.
- Single Operator for Two Operations.
- Less Floor Area -as both the sections driven by one motor.
- No Contamination as immediate sealing of filled bottles.
- Accuracy ± 1% due to piston dozing principle.
- Centralized Volume Adjustment System.
- No Bottle No Fill for Individual head, hence no spillages.
- Placing of Cap Feeder Outside Monoblock-avoid entering of dust in it.
- Less Caps in chute automatically stop the Machine.
- Additional Sensors for Minimum and Maximum Level of Cap in chute which automatically Start and stop.
- Rotary cap feeder to avoid Damage of caps during Rotation and Wastage of Energy.
- Better finish imported polished, laminated S.S. sheet used.
- Electronic liquid level controller and pneumatically controlled control valve.
- Drip trays under the conveyor.
- Self Lubricating UHMW- PE Guide profile for Low friction wear surface, smooth and noiseless conveying.
- Universal Coupling for quick and easy setting of In-feed worm.
- Safety Guard for Operation and Protection.
- Electronic Sensor at out feed for Bottle Jamming.

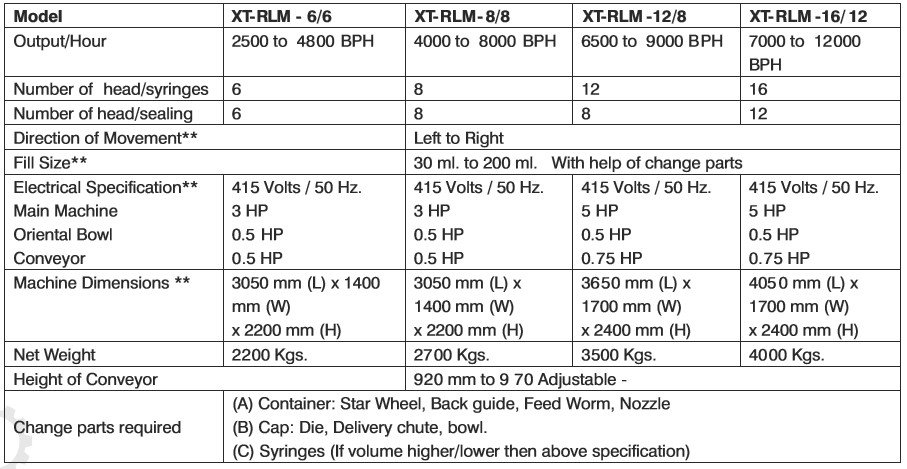

Technical Specifications
