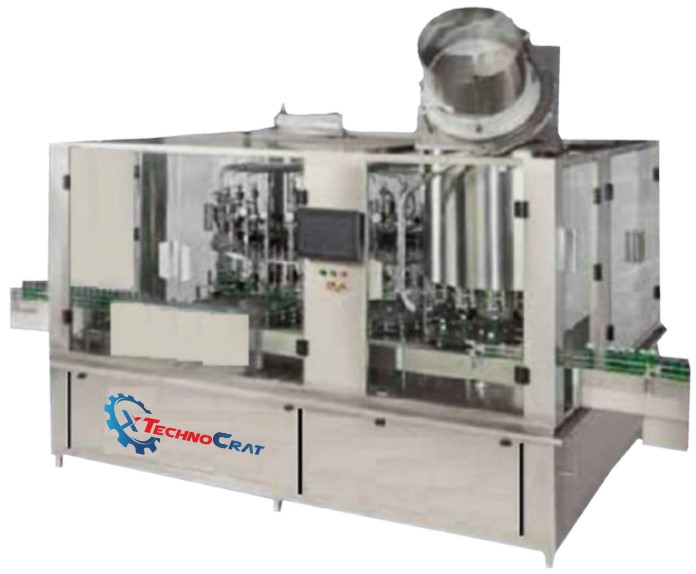

Automatic Flow Meter Rotary Monoblock Liquid Bottle Filling and Capping Machine
Features
- FLOW Meter for High Fill Accuracy and Repeatability.
- Electronically controlled Volume settings through HMI, No Mechanical settings required
- Built in PLC with Colour Touch Screen Operation.
- No Bottle – No Fill System,
- No Bottle – Machine Stop System
- Rotary Bottle Movement for smoother operation
- All contact parts made of SS316 material with easy removal system.
- Very High Fill Accuracy of +/- 1 to 1.5ml for any fill volume upto 250ml and +/- 2ml above 250ml Pack Size.
- Machine also available with option of high fill accuracy of +/- 0.5 to 1ml
- Suitable For Syrup and Suspension having higher viscosity.
- No Tank Inside the Machine for Liquid
- Minimum Change Over time
- Simple Change over for different size of Bottles with No Change Parts system for Different Fill Volume
- Built in A.C. Variable Frequency Drive System.
- Suitable to Handle ROPP as well as Normal SCREW Cap with help of change parts
- Machine also available with Pick N Place SCREW capping for CRC/Special caps.
- Filling and Capping operation in Single machine due to Mono block design
- All Features mentioned above may not be part of standard machine, please check your requirement.

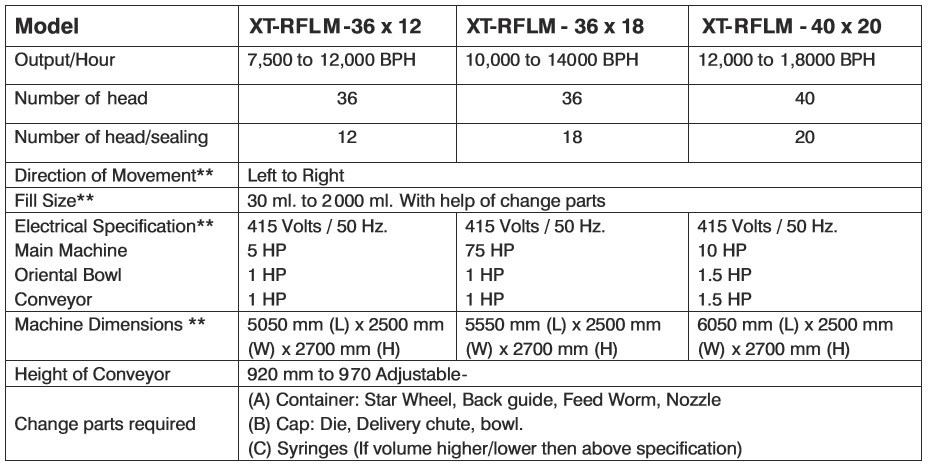

Technical Specifications
