Taping machinery
Taping machinery / Adhesive tape

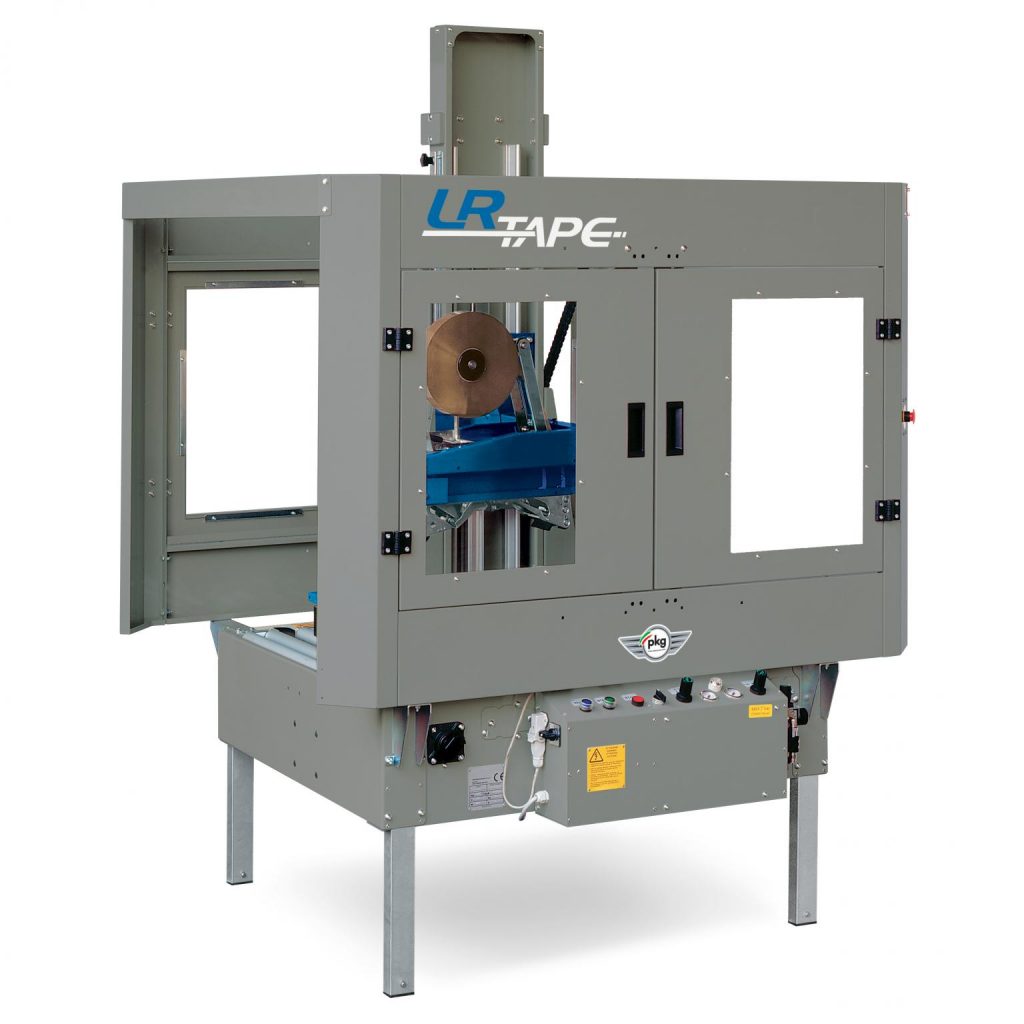

Automatic self-dimensioning cartonsealer with self-adhesive tape for top andbottom sealing of random American-typeboxes.
Technical features
- Power supply: Three-phase/Single-phase
- Installed power: 0,25 Kw
- Electrical protection: IP54
- Average production: 1000 boxes/hour
- Box transfer speed: ~22m/min

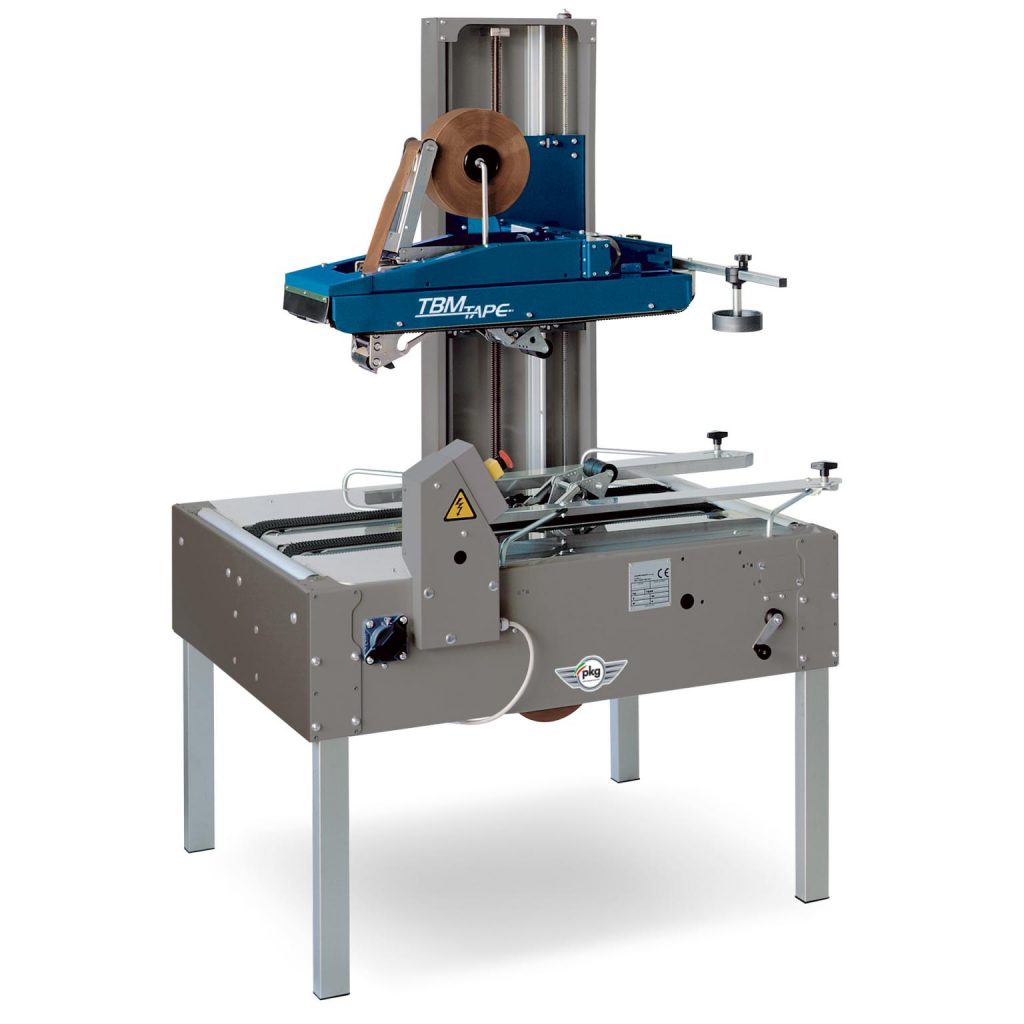

Semiautomatic self-dimensioning tapingmachine which seals with adhesive tape theupper and lower parts of uniform boxes.
Technical features
- Power supply: Three-phase/Single-phase
- Installed power: 0,25 Kw
- Electrical protection: IP54
- Average production: 1000 boxes/hour
- Box transfer speed: ~22m/min

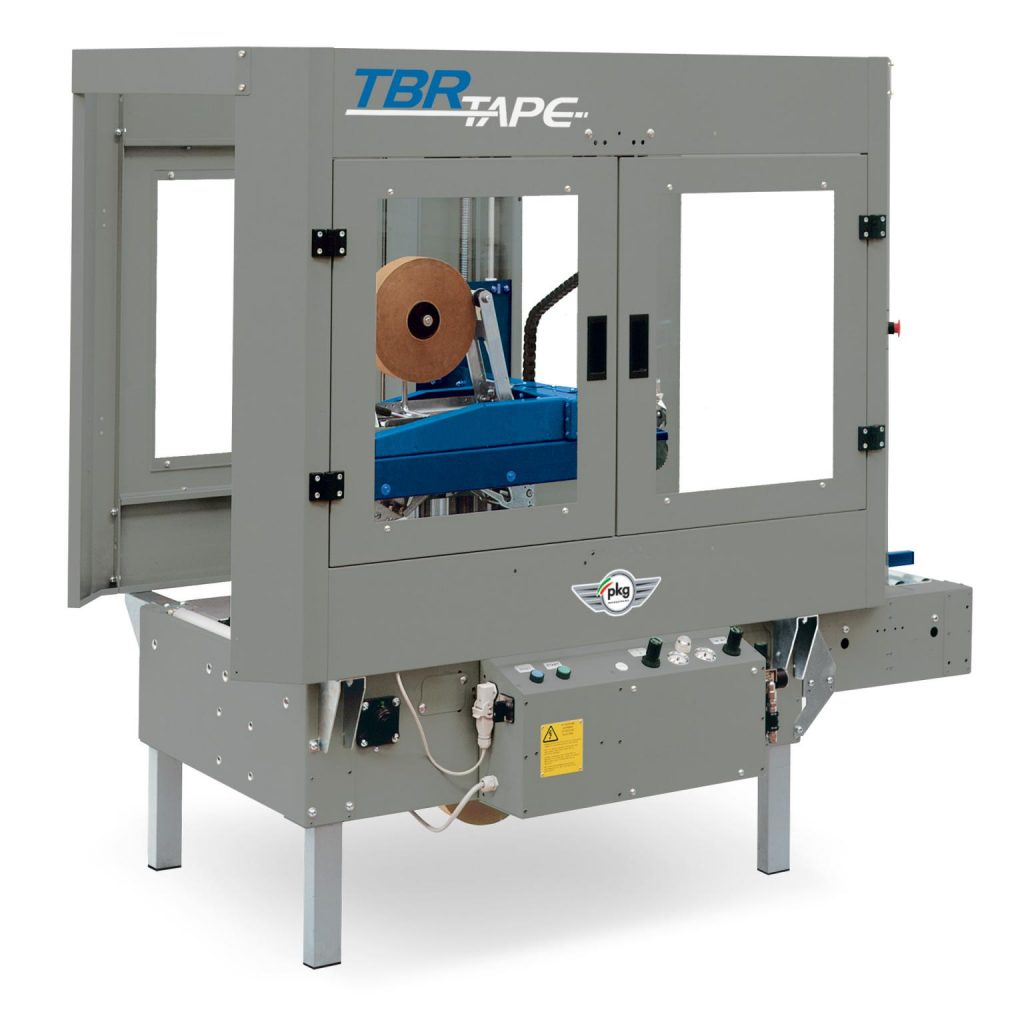

Automatic self-dimensioning cartonsealers with self-adhesive tape for top andbottom sealing of random American-typeboxes.
Technical features
- Power supply: Three-phase/Single-phase
- Installed power: 0,23 Kw
- Electrical protection: IP54
- Average production: 300/500 boxes/hour
- Box transfer speed: ~22m/min

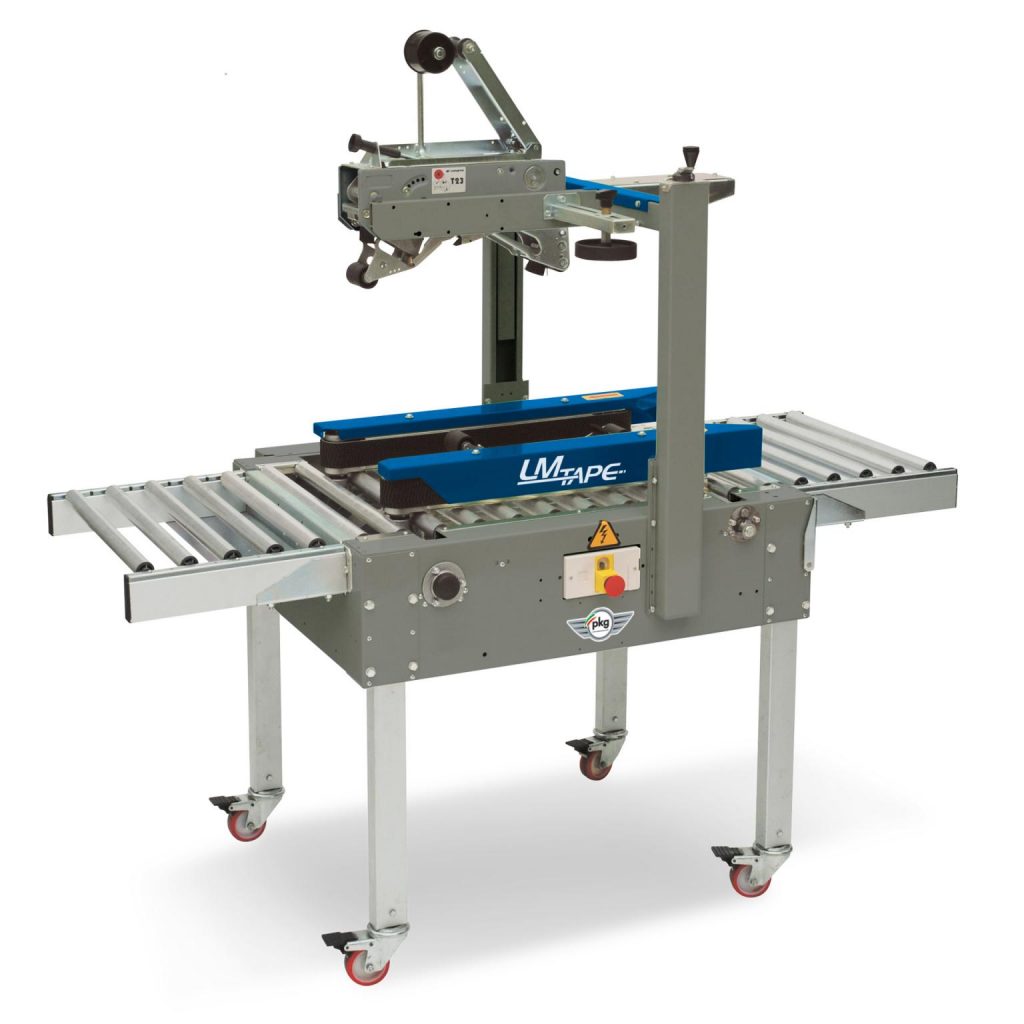

Semiautomatic self-dimensioning taping machine which seals with adhesive tape theupper and lower parts of uniform boxes.
Technical features
- Power supply: Three-phase/Single-phase
- Installed power: 0,25 Kw
- Electrical protection: IP54
- Average production: 600 boxes/hour
- Box transfer speed: ~22m/min

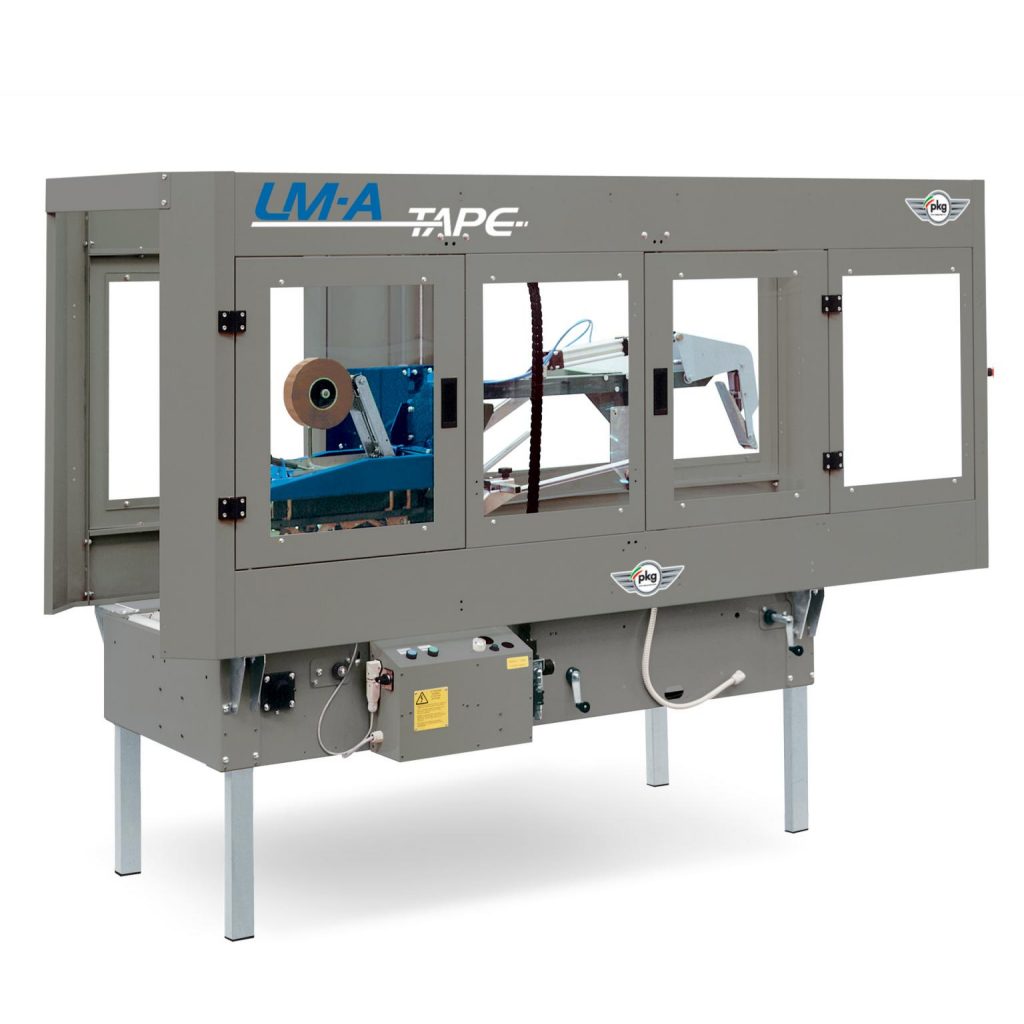

Automatic carton sealer with manual dimensioning and flap closer.
It folds automatically the four upper flaps and seals withauto-adhesive tape the top and bottom of batches of uniformsize, American-type boxes.
Technical features
- Power supply: Three-phase/Single-phase
- Installed power: 0,23 Kw
- Electrical protection: IP54
- Average production: 1200 boxes/hour
- Box transfer speed: ~22m/min

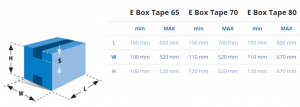

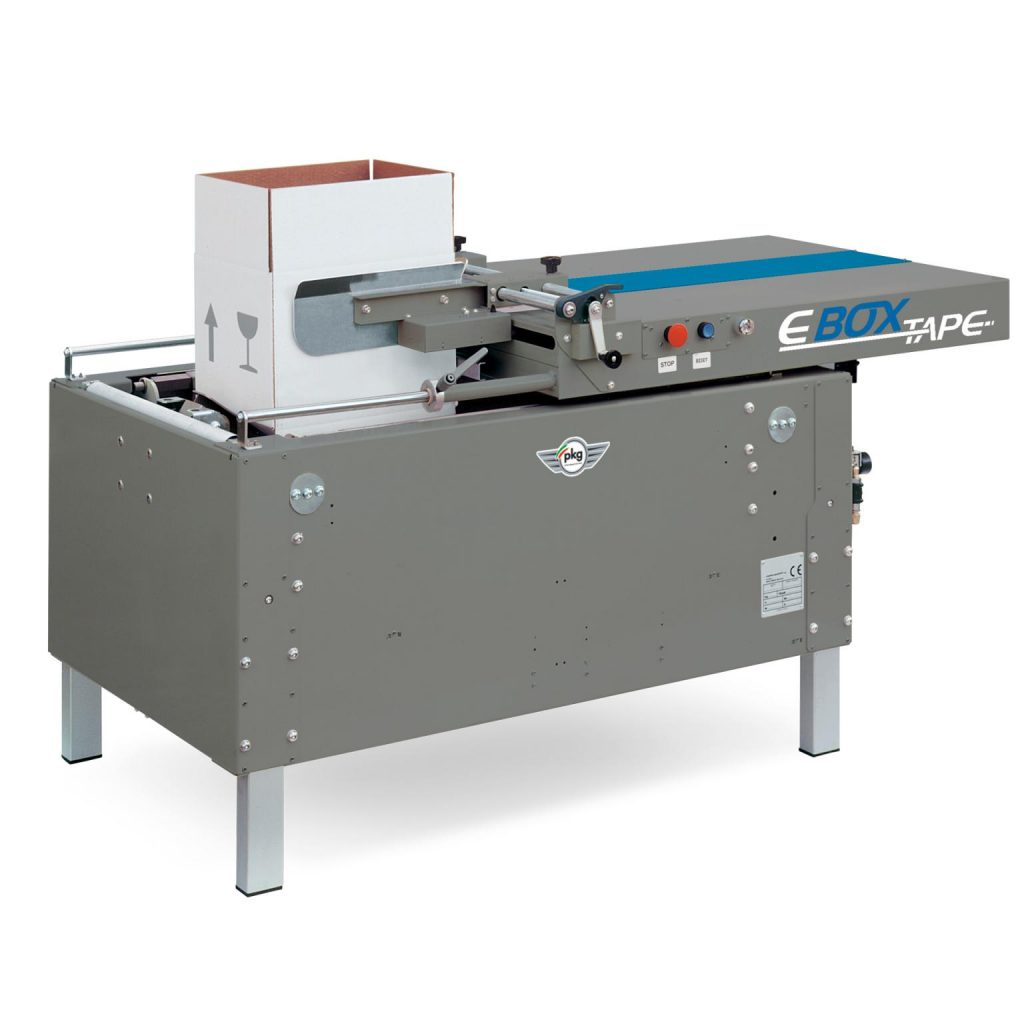

E BOX TAPE is a case erector that,assisted by an operator,a utomatically folds the four bottom flaps of an american box.
Technical features
- Power supply: Single-phase
- Installed power: 0,10 Kw
- Electrical protection: IP54
- Pneumatic power supply: 4 bar o 4×105 Pa
- Air consumption cycle box:
- E BOX TAPE 60 13 nl
- E BOX TAPE 80 16 nl

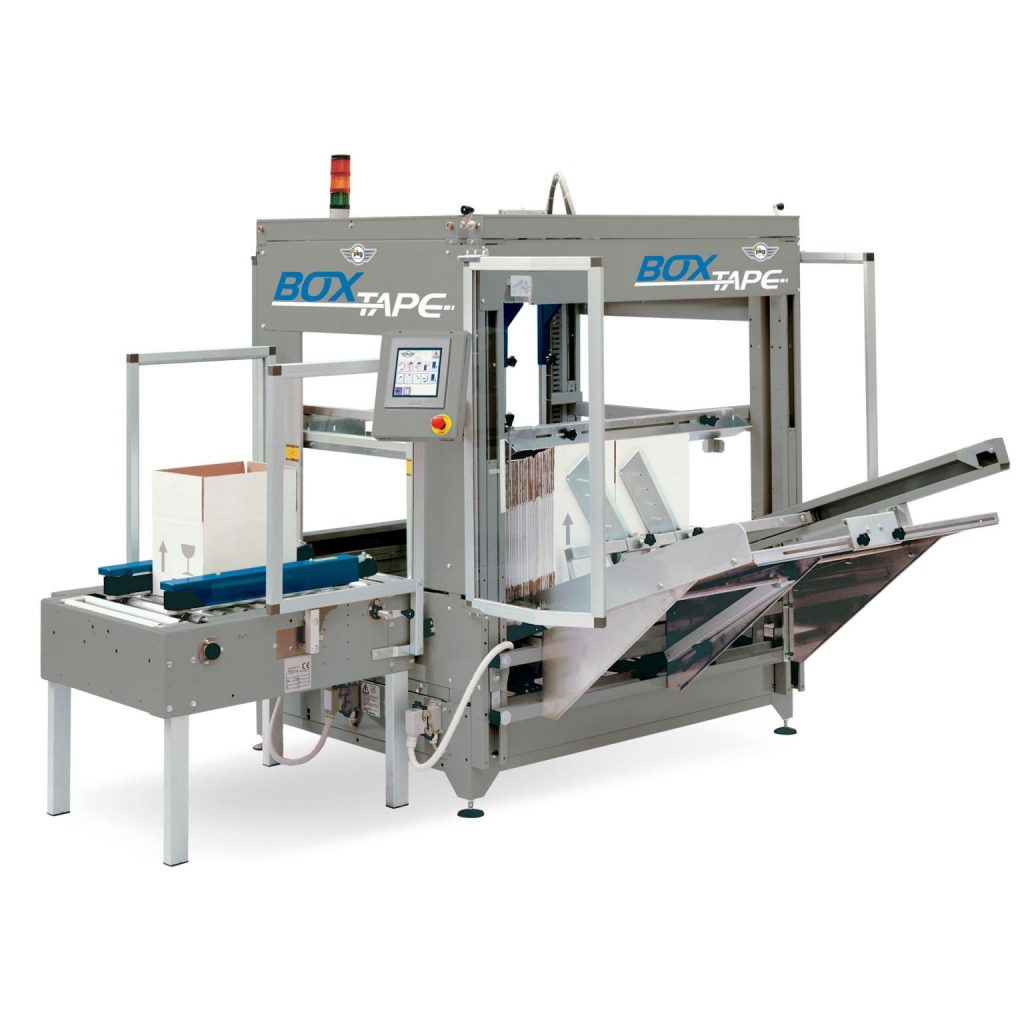

Easy to use. Quick box format adjustment, takes the flat sheet of cardboard from the lateral magazine and after folding the four lower flaps, the box is taped and ready for filling. Compact machine suited for use in every environment.
Technical Features
- Machine structure in pressure-bent steel plate
- Electro-pneumatic drives
- Operation control with electronic logic and dedicated programmable microprocessor
- LCD display monitor

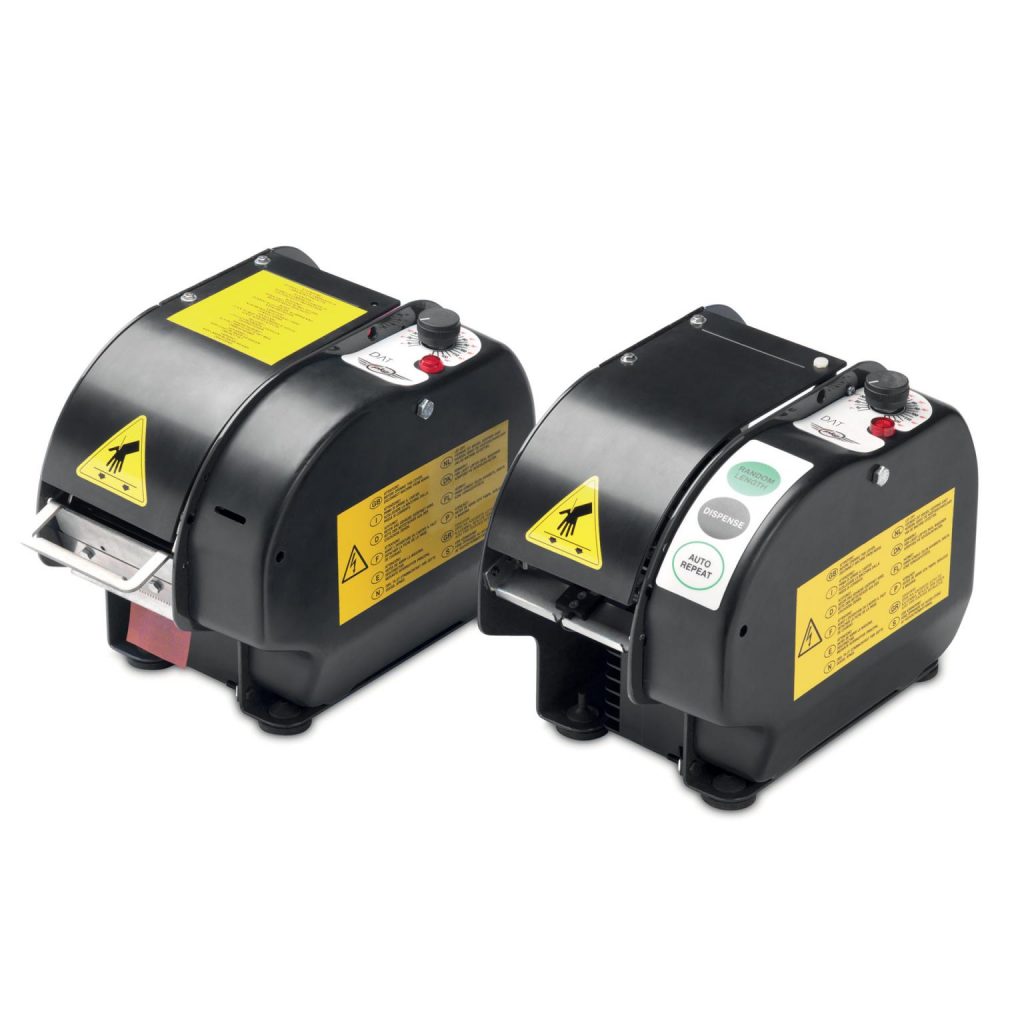

Automatic cutting on any type of adhesive tape, even in continuous use.
Ideal for closing small plastic bags or during the production of electrical appliances or machinery.
Technical features
- Tape width: 15 – 75 mm
- Tape length, adjustable: 50 – 1300 mm
- Internal chuck: 76 mm
- Reel diameter: 190 mm (equivalent to length of 330 metres)
- Power supply: 230 V, 50 Hz, 1 Ph, 50 VA
- Circuits and control: 24 V DC
- Dimensions: 155 x 270 x 205 mm approx.
- Weight: 6 kg approx.

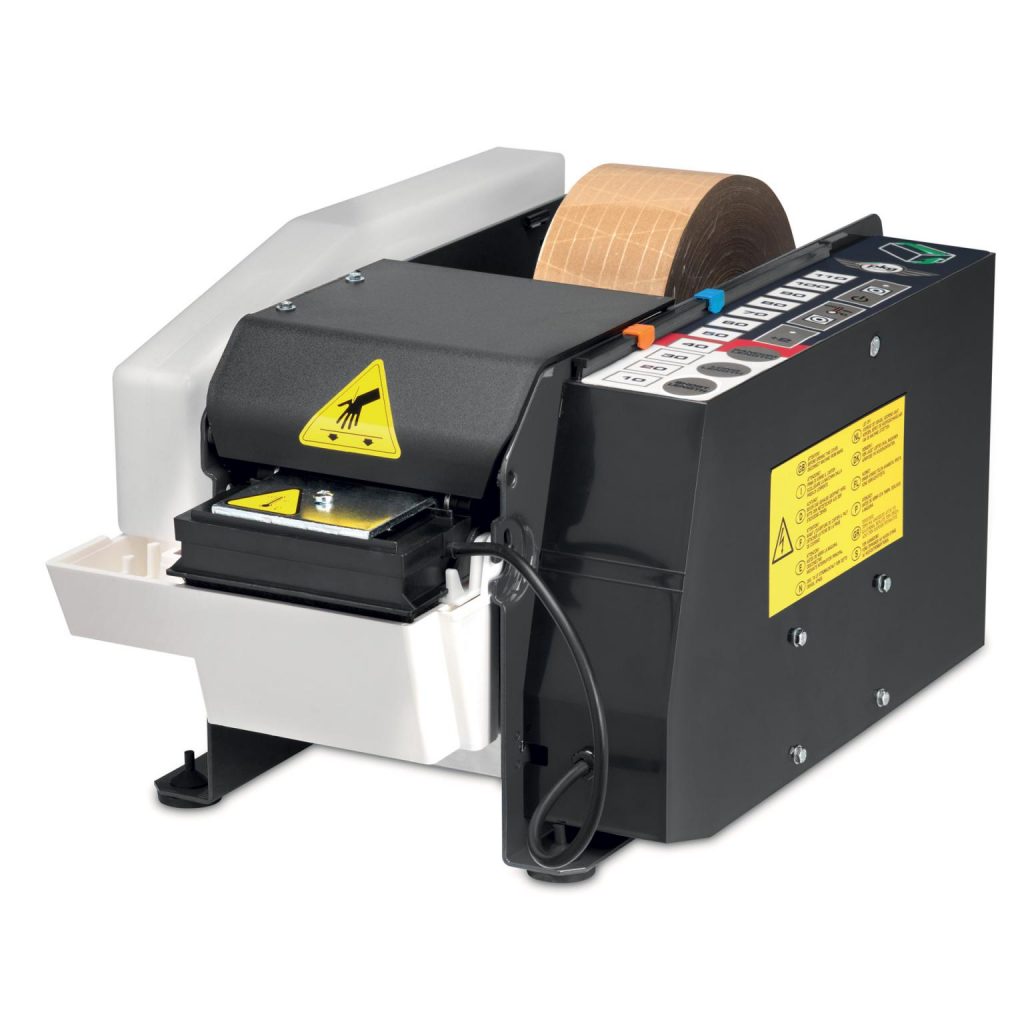

Taping machinery / Gummed paper tape
Technical features
- Tape width: 20 – 100 mm
- Tape length, adjustable: 100 – 1100 mm
- Reel diameter: max. 200 mm
- Power supply: 230 V, 50 Hz, 1 Ph, 100 W
- Operation, heating and control and command circuits all with 24 V DC
- Complete with heating unit
- Dimensions: 450 x 290 x 250 mm approx.
- Weight: 12 kg approx.
