Vertical machinery

Vertical machinery / Semi-automatic

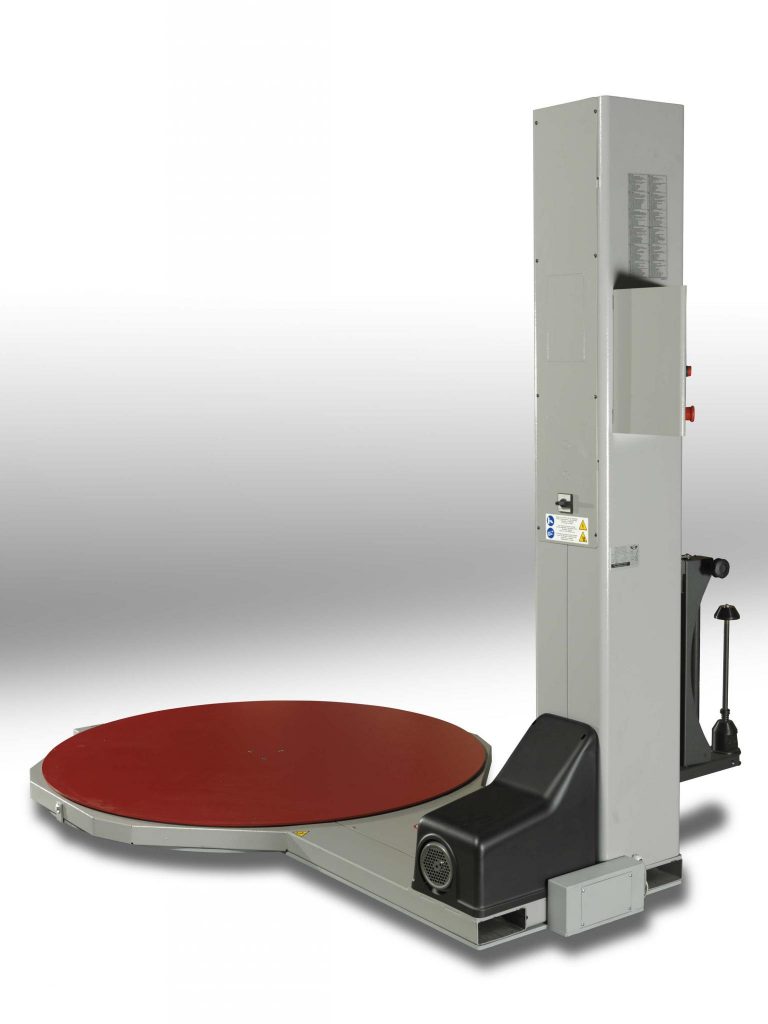

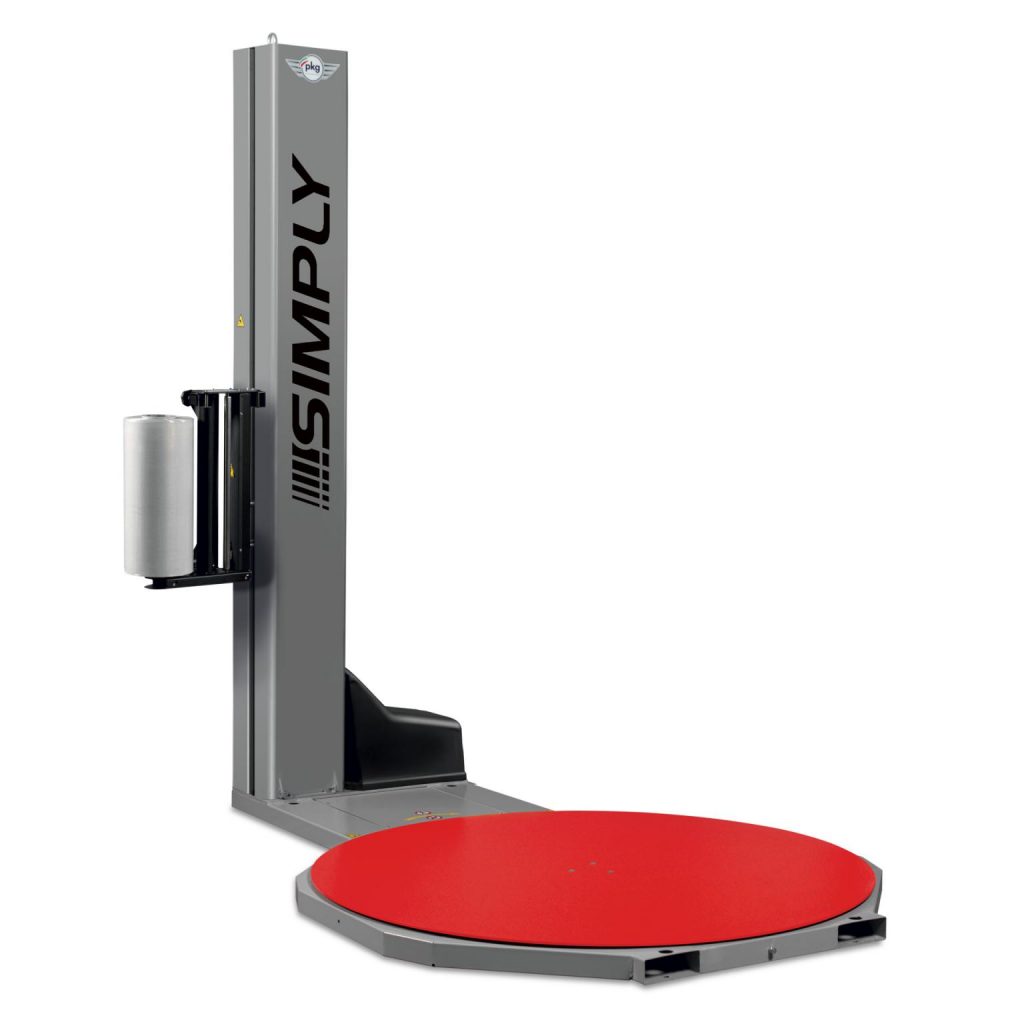

Economic and simple machine, very easy in use, robust, and with all the performances of the bigger machines. Ideal for use with prestretched film and can also be used with film without carton core (optional).

Technical features

  • Turntable ø 1500 mm.
  • Max. Load weight: 1500 Kg.
  • Max. Load dimensions: 800x1200mm.
  • Load height sensing photocell.
  • Wrapping height Max. 2200 mm.
  • Start/stop of rotation in phase adjustable by inverter.
  • Speed of carriage separated adjustable in upwards & downwards movement.
  • Beeper at cycle start and phase stopping at cycle end.
  • Emergency stop button following CE norms.
  • Button to reset machines. Functions following CE norms.
  • Stop and rise of carriage with sensor in basement.

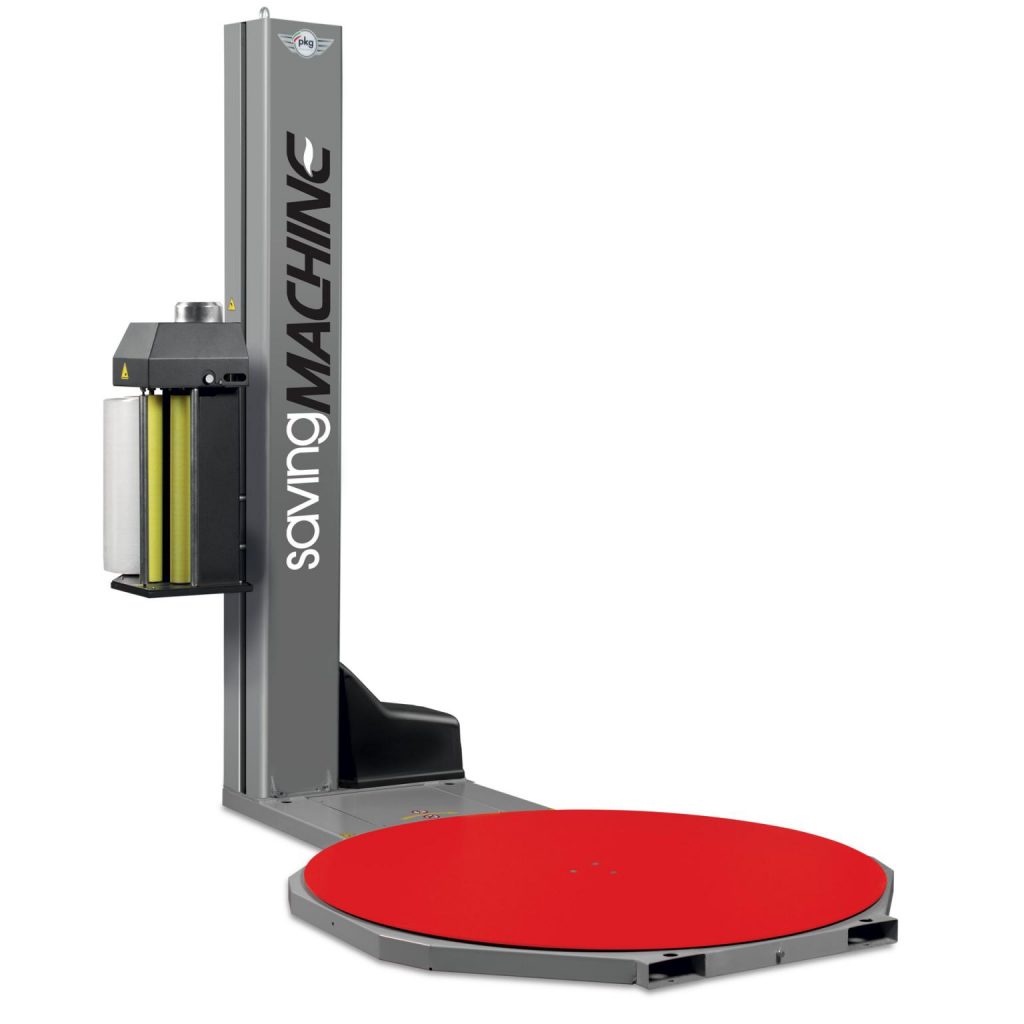

Economic and simple machine, very easy in use, robust, and with all the performances of the bigger machines. Ideal for those who want to save costs and get the best results with the wrapped products

Technical features

  • Turntable ø 1500 mm.
  • Max. Load weight: 1500 Kg.
  • Max. Load dimensions: 800x1200mm.
  • Load height sensing photocell.
  • Wrapping height Max. 2200 mm.
  • Start/stop of rotation in phase adjustable by inverter.
  • Speed of carriage separated adjustable in upwards & downwards movement.
  • Beeper at cycle start and phase stopping at cycle end.
  • Emergency stop button following CE norms.
  • Button to reset machines. Functions following CE norms.
  • Stop and rise of carriage with sensor in basement.

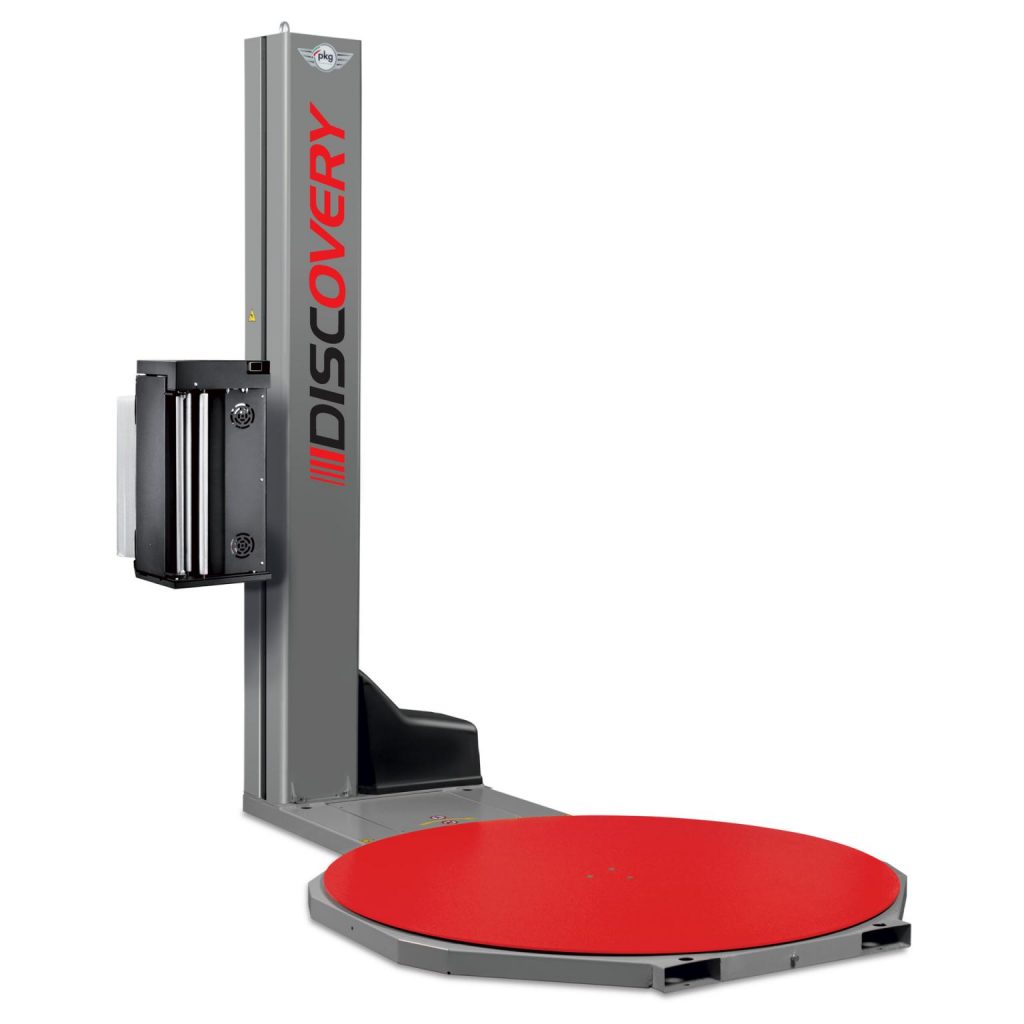

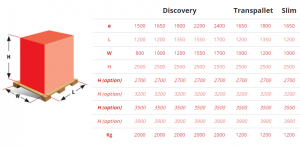

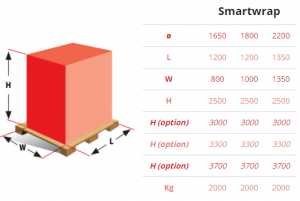

A very easy in use pallet wrapper with a great operational reliability, robust and complete with all performances you may request from a wrapping machine.

Trans pallet version with the possibility to modify the in-feed entrance in any moment.
Availeble in both E-Discovery and Discovery version.

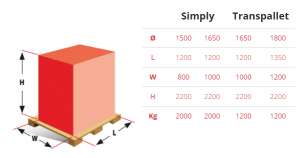

Technical Features

  • Turntable ø 1650 mm.
  • Max. Load weight: 2000 Kg.
  • Max. Load dimensions: 1000×1200 mm.
  • Load height sensing photocell.
  • Wrapping height Max. 2500 mm.
  • Indication alarms.
  • Opening for forklift front/back.
  • Key block.
  • eight of film used (for MPS-MPS2 on request).

Automatic stand alone wrapping turntable with clamp and cutting system, simple and reliable.

Technical features

  • Turntable ø 1800 mm.
  • Max. Load weight: 2000 Kg.
  • Max. Load dimensions: 1000×1200 mm.
  • Load height sensing photocell.
  • Wrapping height Max. 2500 mm.
  • Indication alarms.
  • Opening for forklift front/back.
  • Key block.
  • Automatic clamp and cutting system.
  • Perimeter protections with photocells and cycle start button external.

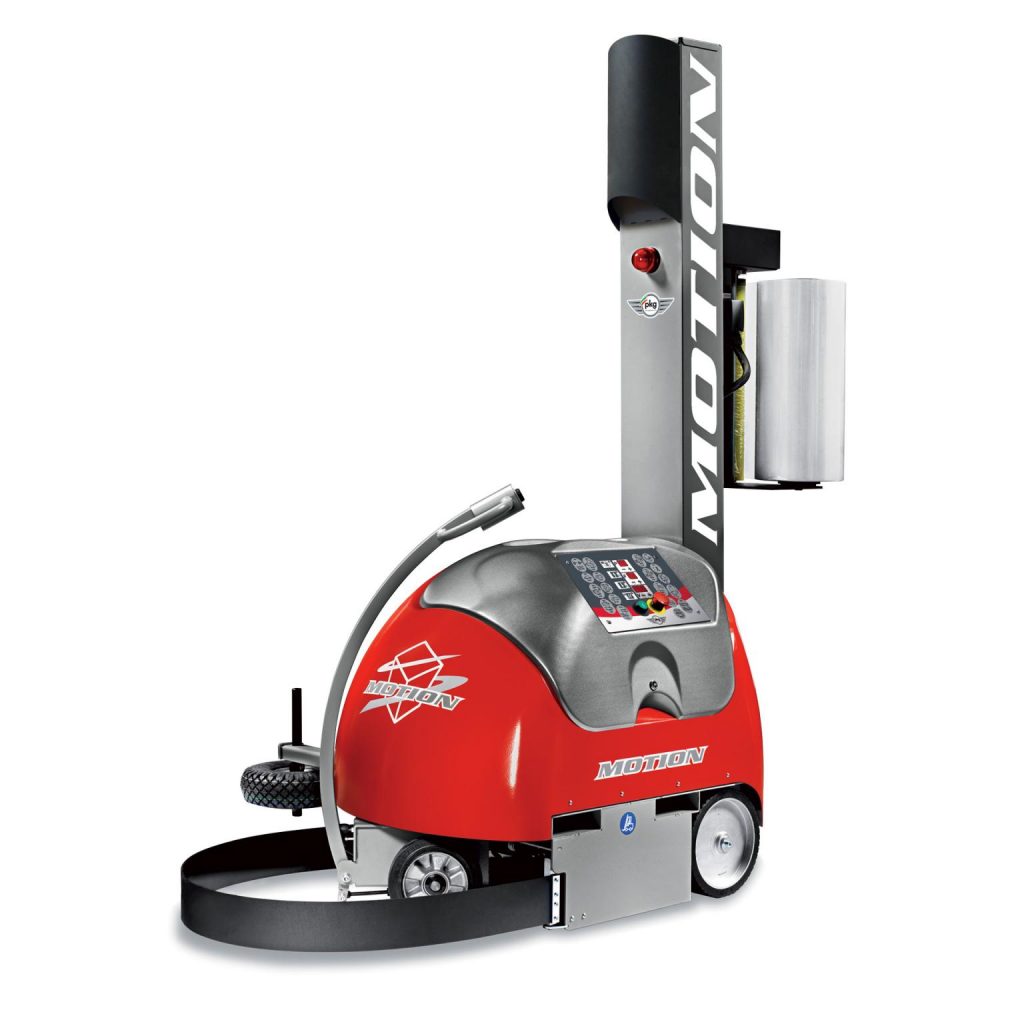

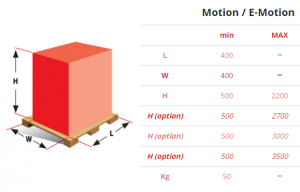

Automotive wrapping robot to wrap pallets of any dimensions, weight and forms while using stretch film or net film.

Technical features

  • 2 AGV batteries 12 v – 110 ah serial connected.
  • High frequency battery charger integrated.
  • Load height sensing photocell.
  • Wrapping height max. 2200 mm. (2700 mm, 3000 mm optional).
  • Indication alarms.
  • Opening for forklift Left&right.
  • Key block.
  • Weight of film used (for MPS-MPS2 on request).

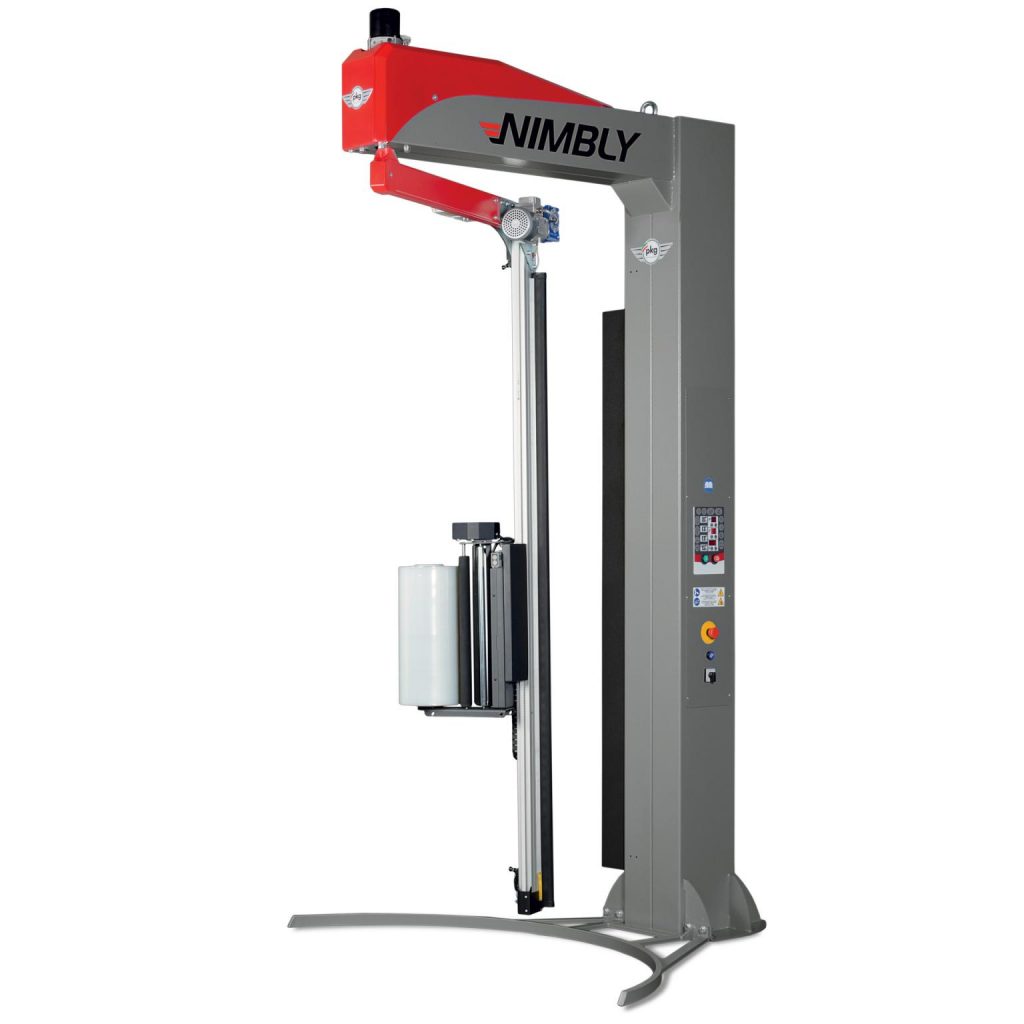

Semi-Automatic easy-to-use stretch wrapper with rotary arm, great operational reliability, robust and complete with all performance features.
Ideal for use with pre-stretched films.

Technical features

  • Max. load dimensions: 1200 x 1200 mm
  • Load height sensing photocell.
  • Wrapping height max. 2200 mm
  • Gradual rotation start/stop controllable by inverter.
  • Carriage up/down speed controllable by independent inverter.
  • Acoustic signal at cycle start and stopping in phase at cycle end.
  • Emergency stop button compliant with CE standards.
  • Machine reset button compliant with CE standards.
  • Emergency/safety stop at base of reel holder carriage.
  • Safety edge on column for emergency stop.

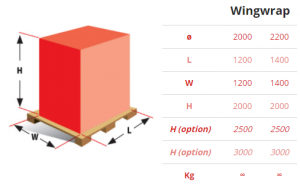

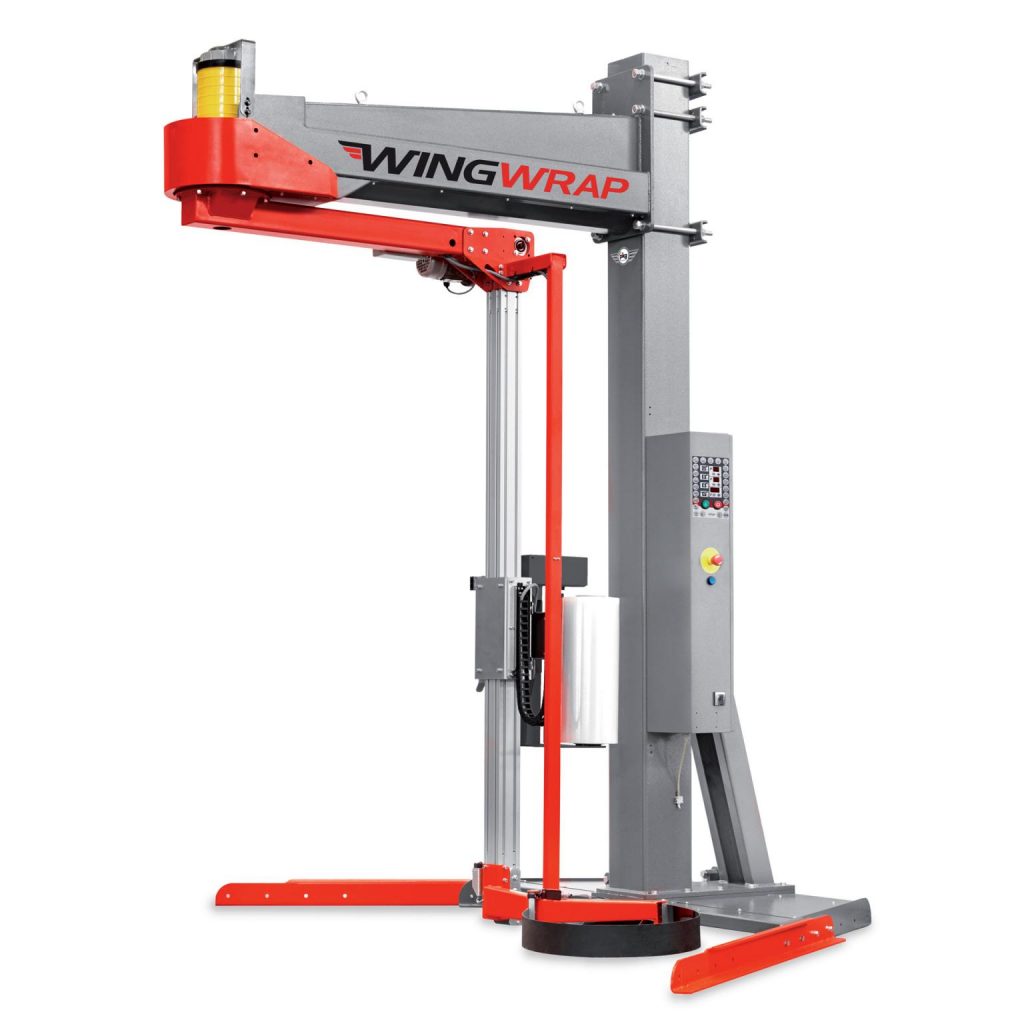

Stretch wrapper by rotary arm, easy in use with a great operational reliability, robust and complete with all performances.

Technical features

  • Max. Load dimensions: 1200×1200 mm.
  • Load height sensing photocell.
  • Wrapping height Max. 2500 mm.
  • Indication alarms.
  • Opening for forklift front/back.
  • Key block

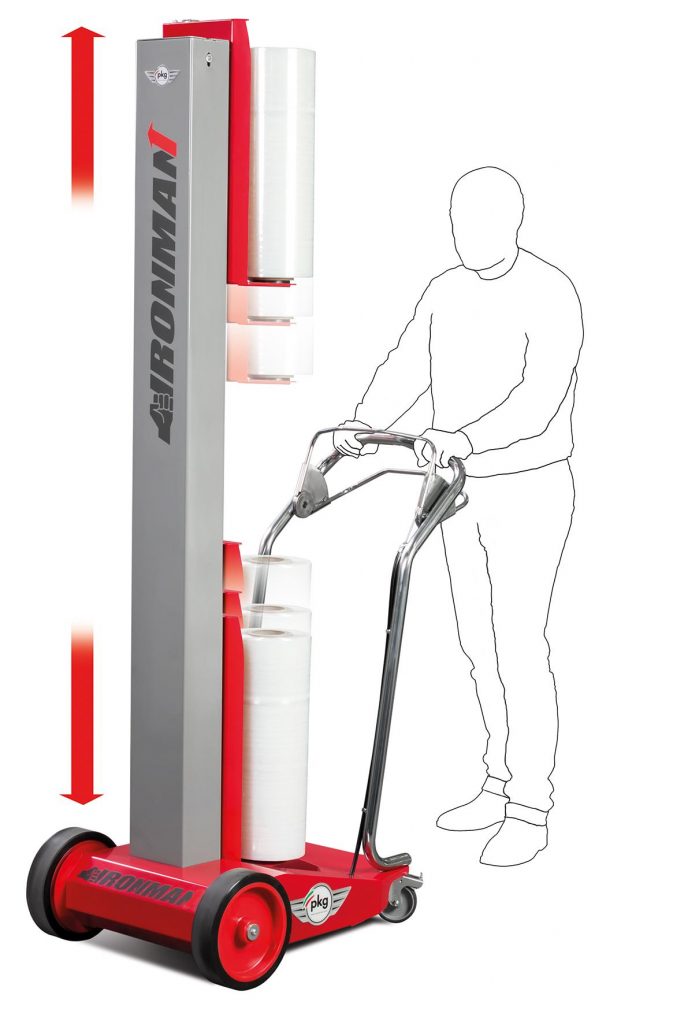

The first machine for wrapping palletized loads of any shape and weight with wrap film without the use of electrical parts.

Technical features

  • Reel size – internal diameter:
  • 76/50 mm (standard)
  • Outer diameter:
  • from 75 mm to 250 mm

requisite

  • Reel weight from 2.5 kg to
  • 16 kg Minimum pallet size: 300 x 300 mm
  • Maximum pallet size:
  • ∞ x ∞ x 2100 mm

New weighing system for machine with turntable diameter 1500/1650

Technical features

  • Can be used on machines with 1500-1650 mm base
  • Height off floor with integrated scale 10 cm
  • Scale capacity 2000 kg
  • division 500 grams

OPTIONAL

  • Ethernet card
  • WiFi card
  • Thermal or thermal transfer printer
  • Loading ramp

Vertical machinery / Automatic

A compact, high performance rotating arm machine to wrap pallets with stretch film. Reliable and robust construction. The machine will be produced to your requirements.

Technical features

  • Max. load weight: 2000 Kg.
  • Load dimensions: 1000 x 1200 mm.
  • Wrapping height: 2000 mm.
  • Max. Rotation speed: 16Rpm.
  • Working height: 400-500 mm.
  • Total installed power: 3Kw
  • Std. Power supply: 400V-50 Hz – 3PH+N+G
  • Machines protection: IP54
  • Operating pressure: 6bar.
  • Various options available.

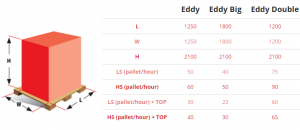

A compact, high performance rotating arm machine to wrap pallets with stretch film. Reliable and robust construction.

Technical Features

  • Max load dimensions: 1250 x 1250 mm
  • Min load dimensions: 600 x 800 mm
  • STD Wrapping height: 2100 mm
  • Max. Rotation speed:
    • LS:25 rpm
    • HS:30 rpm
    • HD:32 rpm
  • Working height:500 mm
  • Total installed power:
    • LS: 3,5 Kw
    • HS: 4,5 Kw
    • HD: 5 Kw
  • Std. Power supply: 400V-50 Hz – 3PH+N+G
  • Machines protection: IP54
  • Operating pressure: 6bar.
  • Various options available.

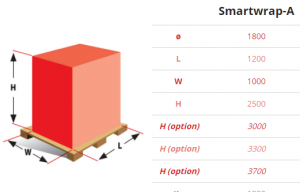

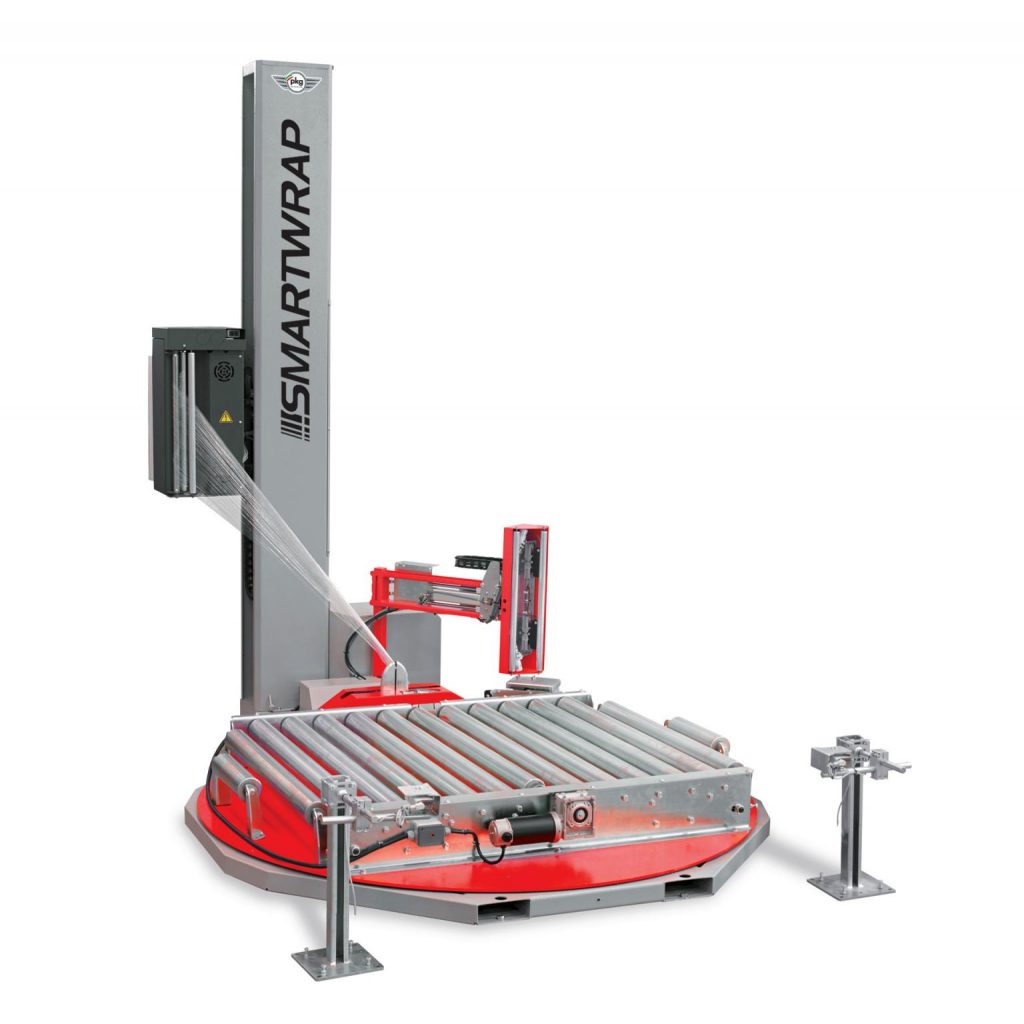

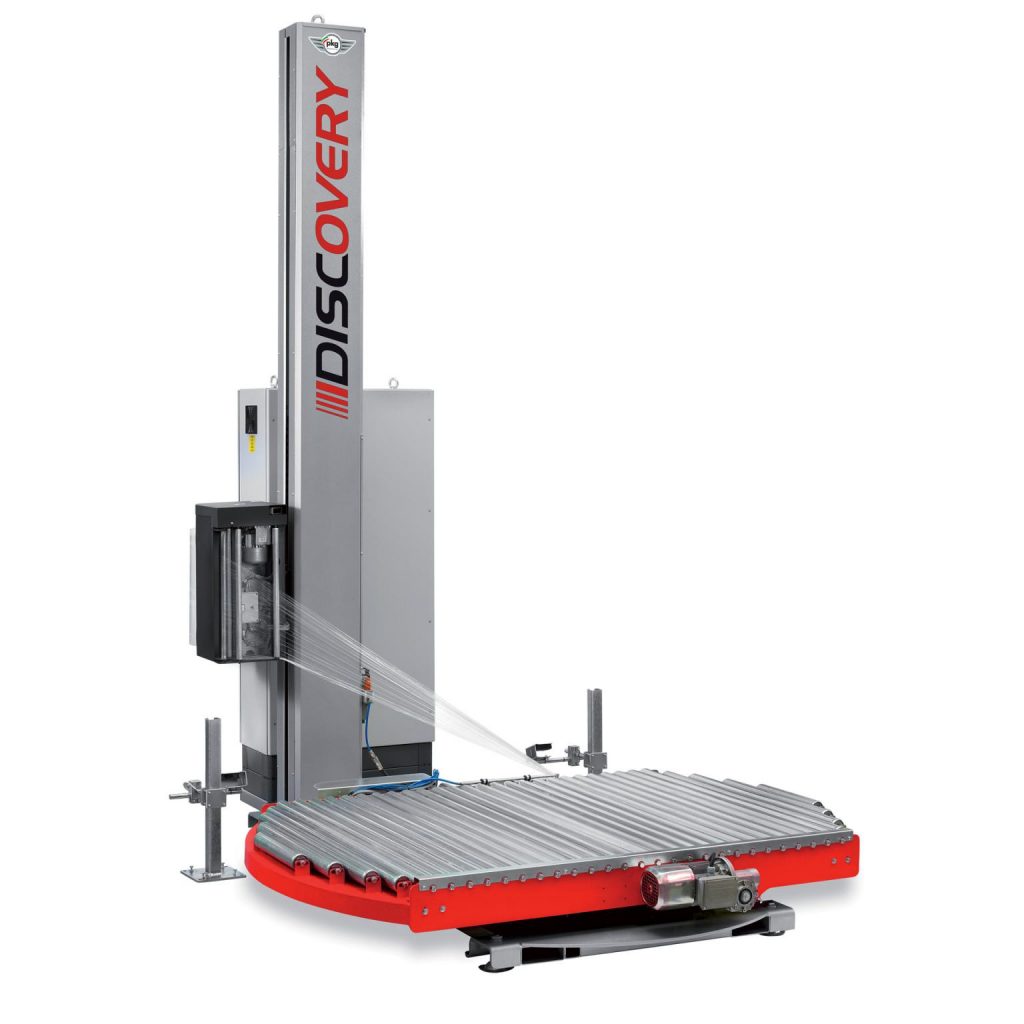

Automatic stretch wrapper perfect to create a packaging station with motorized roll conveyors in entrance and exit.

Technical features

  • Turntable ø 1800 mm.
  • Max. Load weight: 1500 Kg.
  • Max. Load dimensions:1000×1200 mm.
  • Load height sensing photocell.
  • Wrapping height Max. 2300 mm*.
  • Height of roll conveyors from floor: 190 mm to 500 mm.
  • Indication alarms.
  • Automatic clamp and cutting system.

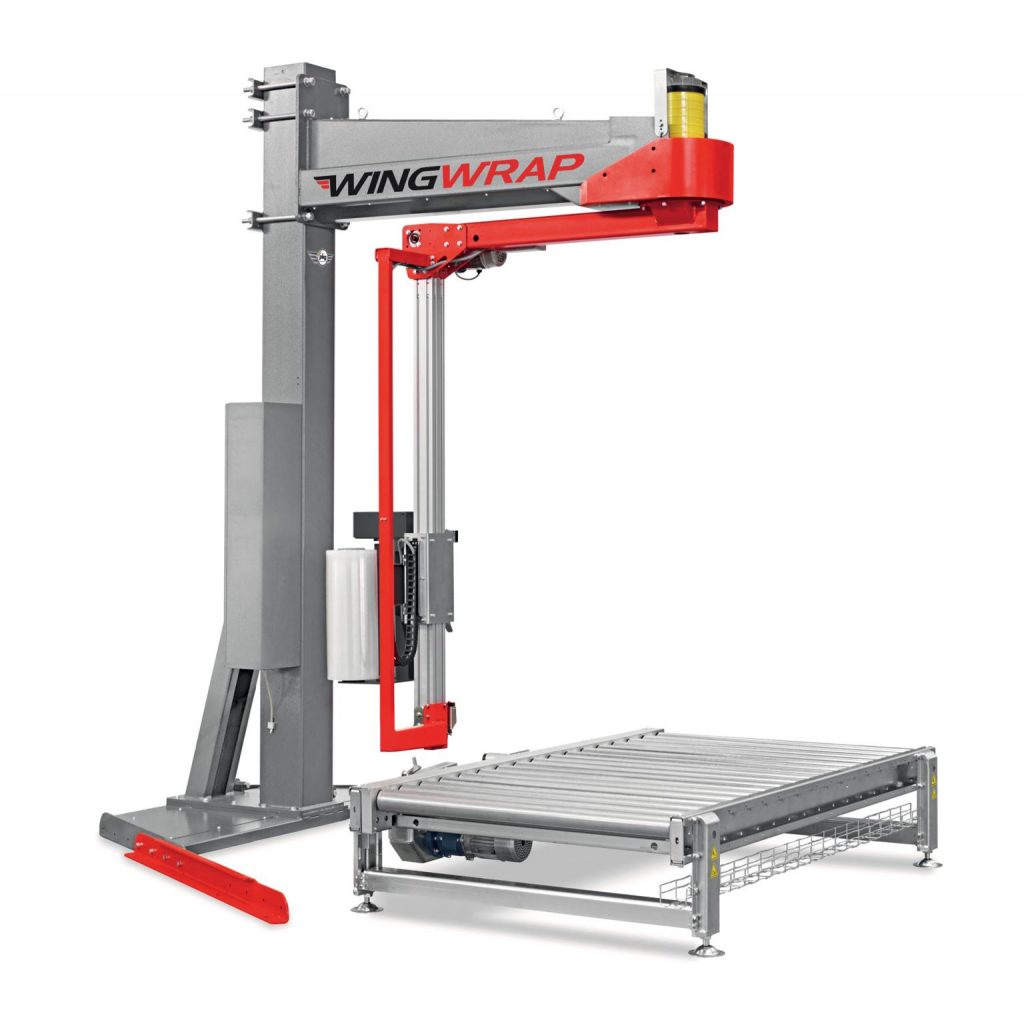

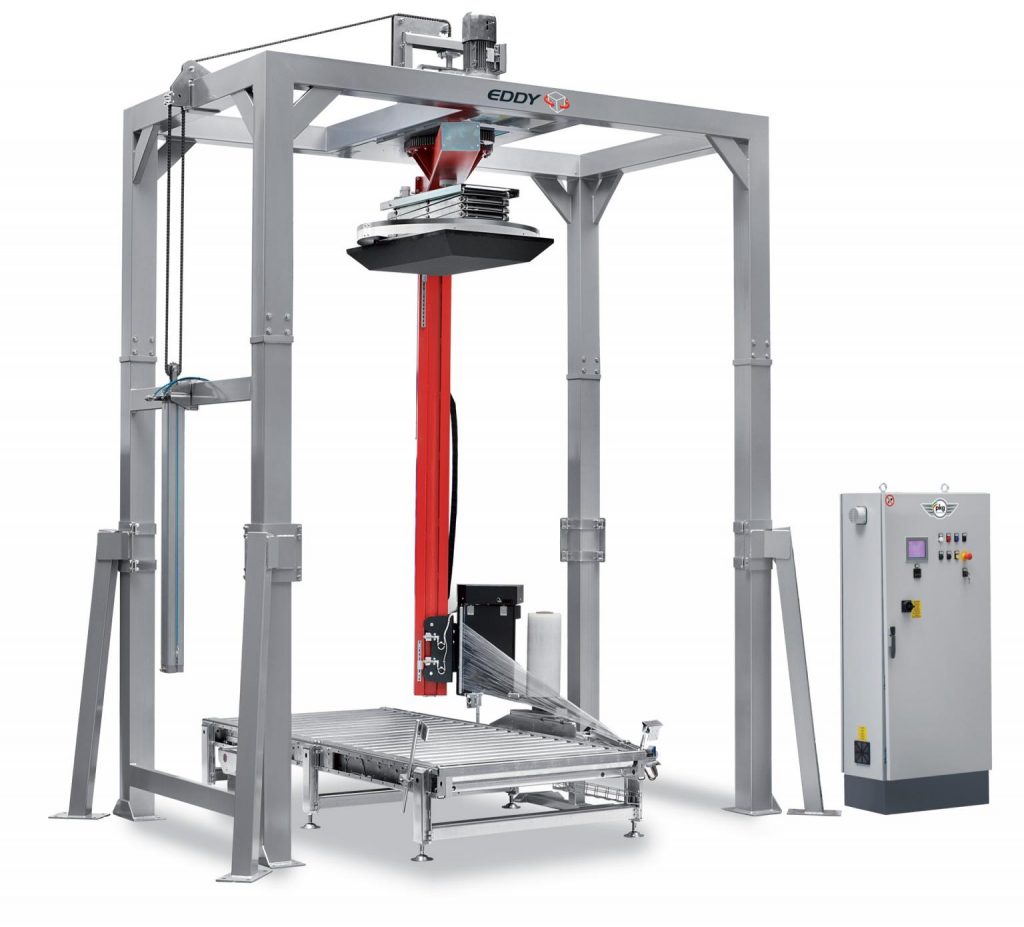

Automatic stretch wrapper with rotary arm, perfect to create a packaging station with motorized entry and exit rollers.

Technical features

  • Max. load dimensions: 1000×1200 mm
  • Load height sensing photocell.
  • Wrapping height max. 2000 mm
  • Alarm indications.
  • Automatic clamping and cutting system.
  • 4 PLC Siemens 57-1200
  • Proface touchscreen.

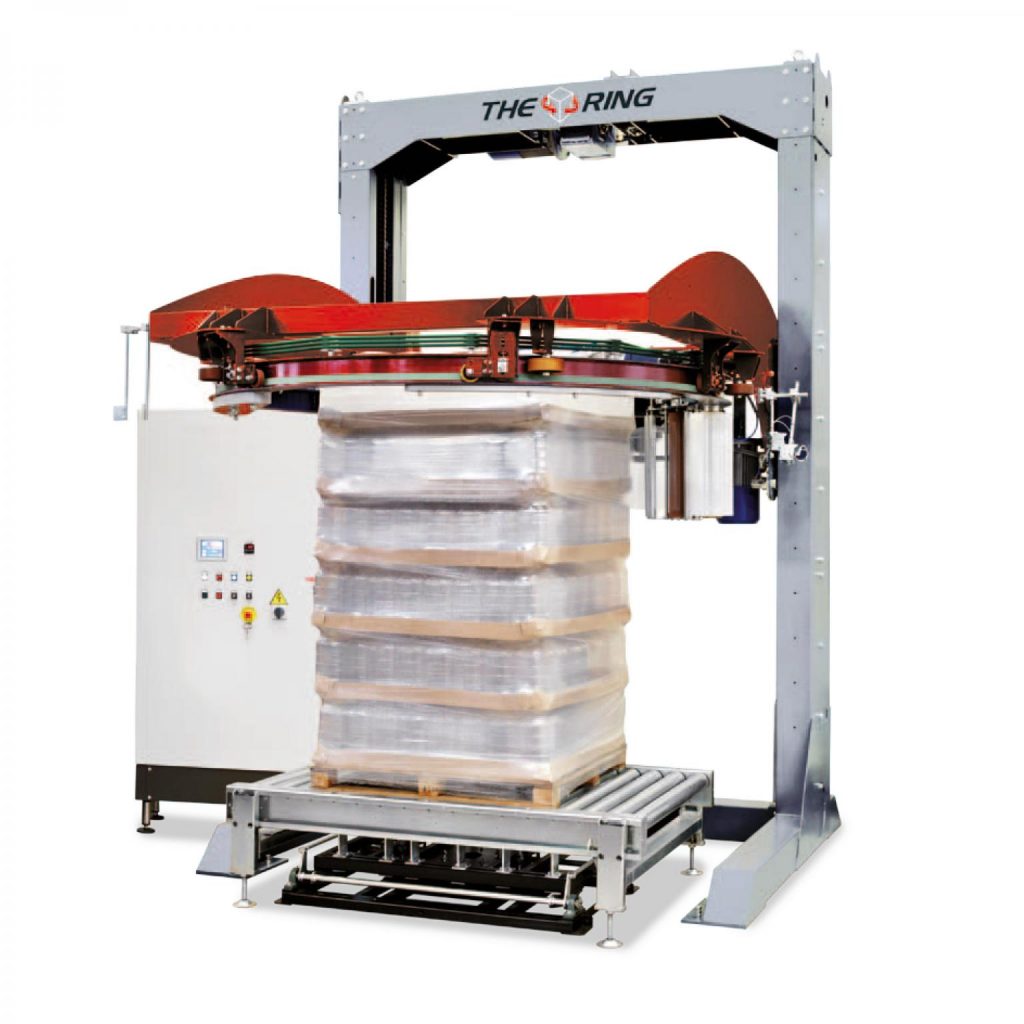

A machine with external pre-stretch drive system, without electric sliding contacts/slip rings or other complex and expensive solutions like electric generator.
Available for output capacity up to 140 pallet/h.
Also available with double film carriage.

Technical features

  • Load dimensions: 1200 x 1200 mm.
  • Wrapping height: 2200 mm
  • Max. Rotation speed: 70Rpm.
  • Working height: 450-550 mm
  • Pre-Stretch ratio: Min 160% to Max 300%
  • Total installed power: 12Kw
  • Std. Power supply: 400V-50 Hz – 3PH+N+G
  • Machines protection: IP54
  • Operating pressure: 6bar.
  • Various options available.
